LED Double Medium Intensity Solar Obstruction Light SUS304 Stainless Steel
Product Details
| Type: | LED Aviation Obstruction Lights | Input Voltage(V): | DC 12V (Solar Powered Way) |
|---|---|---|---|
| Lamp Power(W): | 60W | IP Rating: | IP65 |
| Lamp Body Material: | SUS304 Stainless Steel | Emitting Color: | Red |
| Working Mode:: | Flash Mode(20-60times/minute) | ||
| Highlight |
flashing solar lights,solar powered lights |
||
Product Description

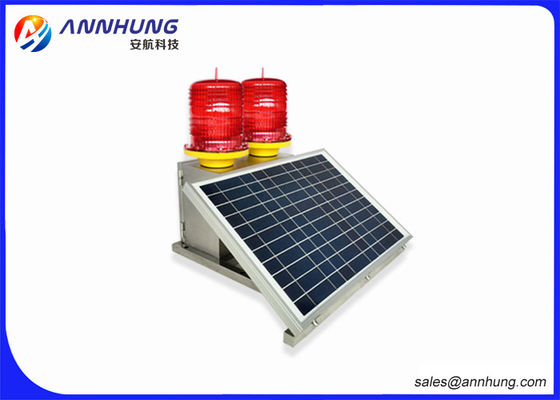

LED Double Medium Intensity Solar Obstruction Light SUS304 Stainless Steel
Medium intensity Solar Aviation Obstruction Light adopts low light but high efficient solar panels integrated design,cooperate with solar dedicated plumbic acid battery as power supply. The battery adopts advance power management system, which can provide good protection when battery ’s voltage and temperature too high or too low,so it can improve the battery’s service life efficiently.
Application
AH-MS/D Medium-intensity Double Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Advantage
1. Low power consumption profession flash switch.
2. International-advanced cold LED with low power consumption, high brightness and service life of light 3ource reaching 100000hours.
4. Strong impact lamp shape with PC material.
5. Strong anticorrosion and UV protection.
6. More than 7 days autonomy.(optional 15days)
7. Having lightning-protection function.
8. Side open of battery box can be open for maintenance convenience very easily.
9. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
Main Parameter
1.Mode: AH-MS/D
2.Standard: ICAO (Aerodromes Annex 14) Medium-intensity Type B,FAA L-864
3.Light intensity:2,000cd ±25%
4. Working way of two lights:
-Two light flashing by Main-standby way, Two lights flashing at the same or two lights flashing 1.5 second interval.(Flash mode, three ways)
-Two light working by Main-standby way, Two lights working at the same time.(Steady-burning way, two ways)
5.Operating voltage:DC12V(Solar powered Way),recyclable batteries with the lightest environmental and long life.
6. Material:
-Housing: PC
-Base: SUS304 stainless steel
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO (Aerodromes Annex 14) Medium-intensity Type B,FAA L-864 |
| Light source | LED |
| LED emitting color | Red |
| Working mode | Flash mode(20-60times/minute) |
| Working voltage | DC 12V (Solar powered Way), recyclable batteries with the lightest environmental and long life. |
| LED life-span | ≥100,000h |
| Power consumption | 60W |
| Intensity | 2,000cd ±25% |
| temperature range | -40C ~ +60C |
| Protection standard | IP65 |
| Mass | 16.0kg |
| Material | Base:SUS304 stainless steel , housing: PC |
Dimension Drawing
Product Picture
