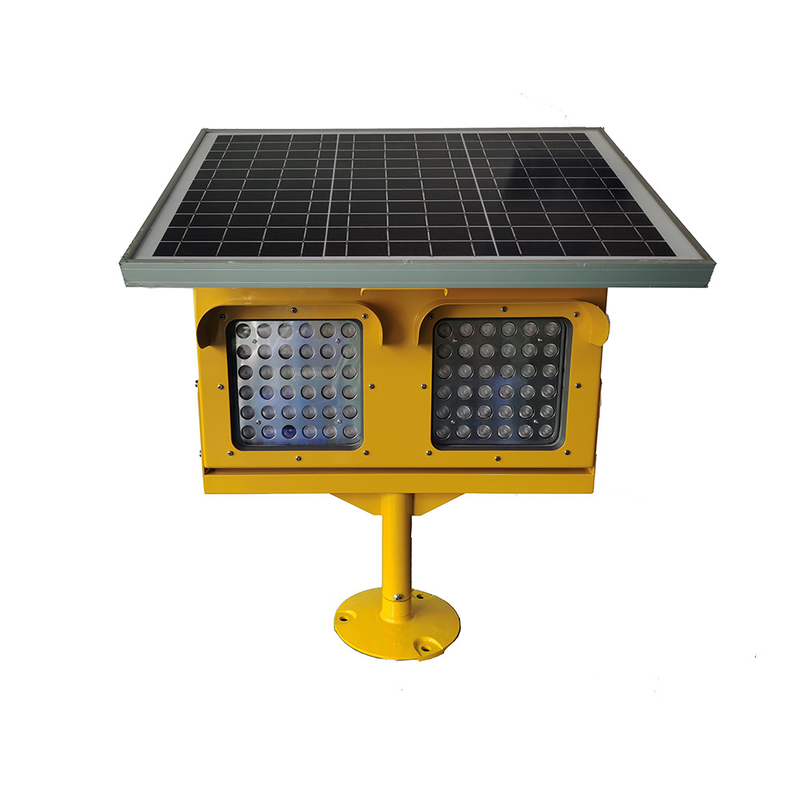

IP66 50fpm Solar Runway Guard Light Yellow Flashing ICAO Annex 14
Product Details
| Input Voltage(V): | DC 12V | Beam Angle(°): | 360 |
|---|---|---|---|
| CRI (Ra): | 100 | IP Rating: | IP65 |
| Highlight |
50fpm Solar Runway Guard Light,IP66 Solar Runway Guard Light,Annex 14 rwy guard light |
||
Product Description
Solar Powered Runway Guard Light, Yellow Flashing, 30-60flashes, ICAO Annex 14 for airport and helipad
Compliance of Runway Guard Light
ICAO Annex 14 Volume I
FAA AC 150/5345
Features of Runway Guard Light
Electrical
Significant reduction of maintenance costs and re-lamping expenses through long-lasting LED technology- more than 100,000 hours under actual operating conditions
Very less power could meet the standard intensity request
Physical
Fragile coupling avoid secondary damage
Permanent installation for commercial, defense and remote airfields
Temporary operation during construction, rerouting of taxiways or humanitarian aid
Rugged, self-contained solar engine with replaceable batteries.
Optional
Wireless remote operation capabilities
Extra battery charger from 110-240vac
Application of Runway Guard Light
Airport,
Helipad taxiway
Emergency operations
Airport/Airdrome
| SPECIFICATIONS | AH-HP-RG-S Solar Runway Guard Light |
| Light Characteristics | |
| Light Source | LED |
| Emitting Color | Yellow, Red/Green (others are optional) |
| Angle(°) | ±30° |
| Working mode | Flashing 50fpm |
| Operation Mode | 24hours, photocell is optional |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12V |
| Power(W) | 22 |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon,12V/40W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 12V/20AH |
| Battery Service Life | Average 5 years |
| Autonomy | 14 days (without charging) |
| Physical Characteristics | |
| Light Body Material | Aluminum alloy |
| Light Overall size(mm) | 500×347×618 |
| Installation size(mm) | Θ140×θ12 |
| Weight(kg) | 12.55 |
| Product Life Expectancy |
≥10 years
|
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-25~70 |
| Humidity | 10~900% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Optional | |
| Wireless Remote Control | |
| Extral battery charger from 110-240vac | |
AH-HP-RG-S Solar Runway Guard Light is a self-sustaining, completely autonomous airfield lighting technology, designed for permanent, temporary or portable airfield operations. With its self-contained design, the Solar Powered system eliminates the need for conventional power inputs, expensive infrastructure and daily energy and maintenance costs, while increasing airfield safety 24 hours per day in the most challenging climates around the world.
The AH-HP-RG-S offers a quick and effective solution to airfields, in support of efforts to prevent unnecessary runway incursions and enhance over-all airfield safety. Runway Guard Light is an elevated unidirectional flashing yellow light fixture that provides a distinctive warning to pilots that they are approaching a runway holding position and are about to enter an active runway.
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
