Low - Intensity Solar Obstruction Light / 3W Double Aircraft Warning Light
Product Details
| Type: | LED Aviation Obstruction Lights | Lamp Power(W): | 3W |
|---|---|---|---|
| IP Rating: | IP65 | Lamp Body Material: | Die Casting Aluminum |
| Emitting Color: | Red | Working Mode:: | Steady-burning Mode Or Flashing Mode(20-60times/minute) |
| Highlight |
airport obstruction lights,solar powered lights |
||
Product Description

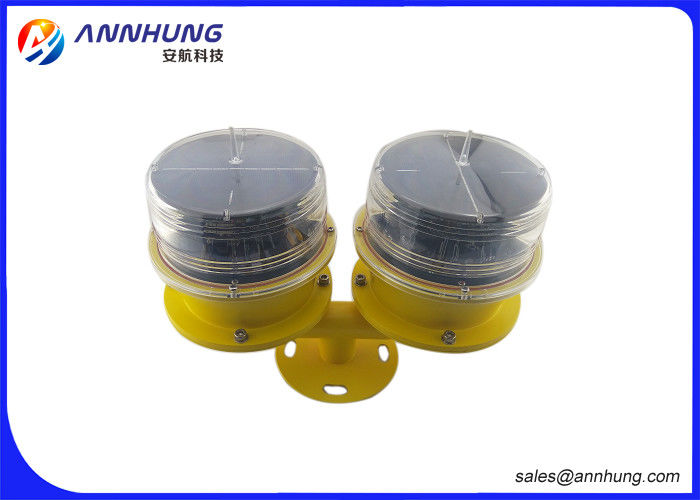

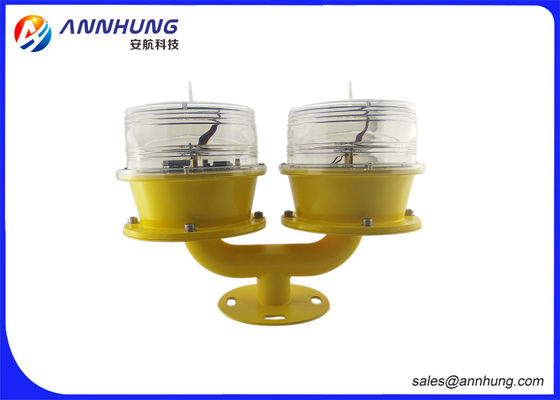

Low - Intensity Solar Obstruction Light / 3W Double Aircraft Warning Light
Details
1. Mode:AH-LS/T
2. Standard:ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810
3. Light intensity:≥10cd(Steady-burning);≥32.5cd(Flashing mode)
4. Working mode: Steady-burning mode or Flashing mode(20-60times/minute)
5. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
6. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
Product Application
-High-rise Building
-High Chimney
-marking towers (Telecom, GSM, Microwave & TV)
-High Pole
-Tower Crane
-Wind Turbinebridge
-large-scale port machinery
-large engineer machinery
-wind turbines
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| LED Emitting color | Red |
| Working mode | Steady-burning mode or Flashing mode(20-60times/minute) |
| Supply voltage | DC 6.4V (Solar powered Way), recyclable batteries with the lightest environmental and long life. |
| LED lifetime | ≥100,000h |
| Power | 3W |
| Intensity | 2,000cd(Night) ,20,000cd(Daytime) |
| Working temperature | -40C ~ +60C |
| Mass | 3.0kg |
| Material | Base:die casting aluminum , housing: PC |
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Diamension Drawing
Product Picture
Product Highlights
Low - Intensity Solar Obstruction Light / 3W Double Aircraft Warning Light Details 1. Mode:AH-LS/T 2. Standard:ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810 3. Light intensity:≥10cd(Steady-burning);≥32.5cd(Flashing mode) 4. Working mode: Steady-burning mode or Flashing mode(20...
