LED Surface Heliport Flood Light is used for illuminate the whole heliport area at night. It is specially designed for helipads, providing glare-free, uniform surface lighting for landing and loading activities. LED Surface Floodlights improve pilot depth perception by reflecting the surface of the helipad, allowing pilots to better estimate their altitude during landing.
Compliance
l ICAO Annex 14 Volume ǁ Heliports 5.3.9
l FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
l High intensity, energy efficient LED, glare-free floodlight
l Period of LED Life ≥100,000 hours
l Power supply available in AC(110-240VAC), DC48V, DC12V, etc
l Ultra-efficient LED reduce power consumption
Physical
l The enclosure is made out of stainless steel powder coated in electrostatic field, ensure it have good weather resistance
l The assembly has a low profile of less than 25cm and mounts to frangible point
l Specially custom lens optic designed specifically for helipad operation
l The angle of tilt of the luminaire is easily adjusted to maximise heliport illumination
Optional
l Infrared LED for pilot using NVG(Night Vision Goggles)
l Controller for power supplying and turn ON/OFF light
l VHF pilot to ground remote control
l Marine treated
Application
l Helipad/Heliport /Helideck
| SPECIFICATIONS |

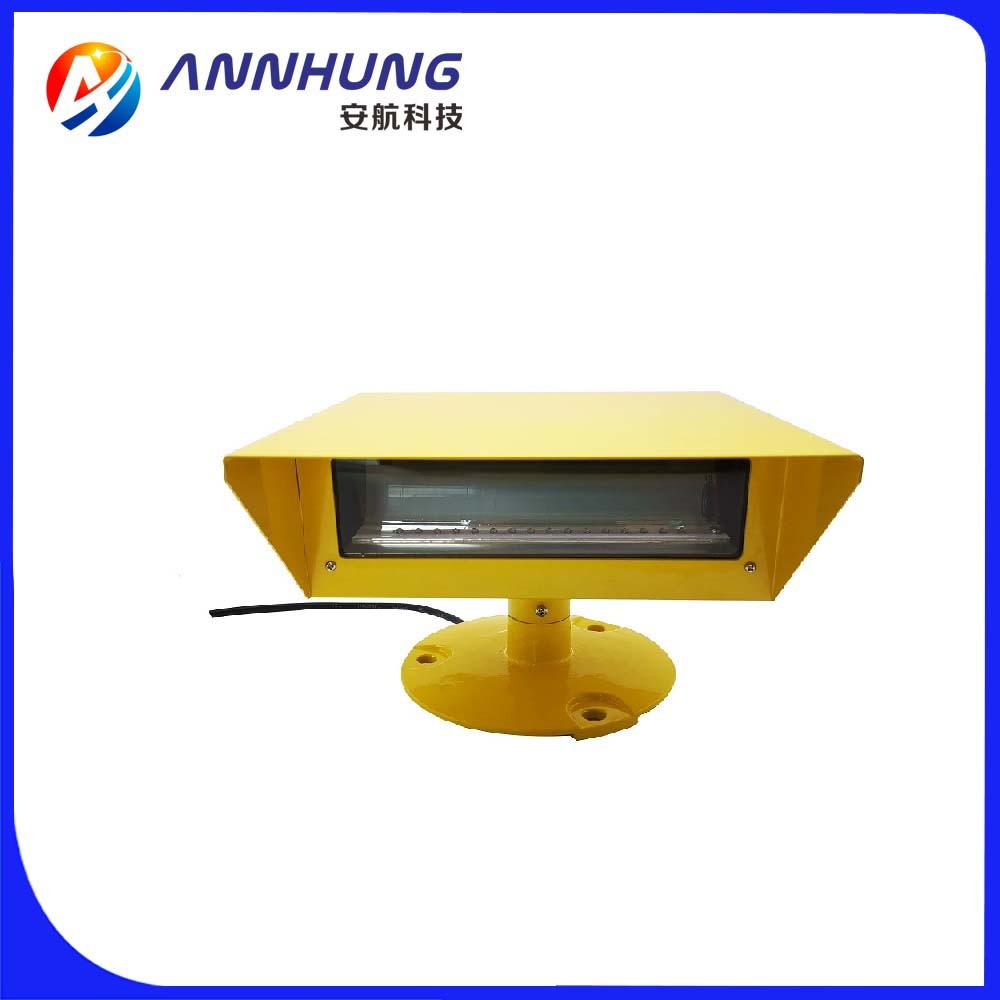

AH-HP-F1 LED Heliport Surface Flood Light |
| Light Characteristics |
|
| Light Source |
CREE Ultra high intensity LED |
| Emitting Color |
White |
| Luminous efficiency: 120lm/W |
120lm/W |
| Flash Characteristics |
Steady burning |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) |
>100,000 |
| Electrical Characteristics |
|
| Operating Voltage |
110-240VAC, 48VDC, 24VDC or others |
| Power(W) |
10 |
| Physical Characteristics |
|
| Enclosure Material |
Powder Coated Stainless Steel |
| Overall size(mm) |
230×230×165 |
| Installation size(mm) |
140×140×12 |
| Weight(kg) |
2.4 |
| Product Life Expectancy |
Average 5 years
|
| Environmental Factors |
|
|
Ambient Temperature(℃)
-55℃~+70℃
|
-55~70 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof |
IP66 |
| Compliance |
|
| ICAO |
ICAO Annex 14 Volume ǁ Heliports 5.39 |
| Options Available |
|
| |
Infrared LED compatible for NVG (Night |
| |
Vision Goggles) |
| |
Marine Treated |
| |
VHF pilot to ground remote control
|
datasheet download: download AH-HP-F1 LED Heliport Surface Flood Light...
