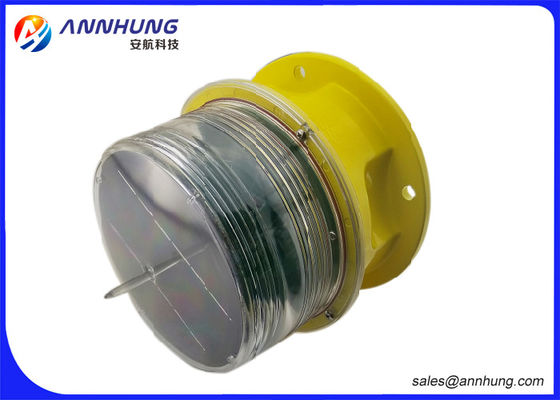

1m - 45m Aviation Warning Light / Aircraft Warning Lights on Towers
Product Details
| Type: | LED Aviation Obstruction Lights | Input Voltage(V): | DC6.4V(Solar Powered Way),recyclable Batteries With The Lightest Environmental And Long Life. |
|---|---|---|---|
| Lamp Power(W): | 3 | Lamp Body Material: | Die Casting Aluminum |
| Emitting Color: | Red | Working Mode:: | Steady-burning Mode Or Flash Mode(20-60times/minute) |
| Highlight |
airport obstruction lights,flashing solar lights |
||
Product Description
1m - 45m Aviation Warning Light / Aircraft Warning Lights on Towers
Details
1.Clean, renewable, green and reliable energy source
2.Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
3. At least 5 days autonomy (optional 20days).
4. Recyclable batteries with the lightest environmental.
5.Working mode: Steady-burning mode or Flash mode(20-60times/minute)
6.Light source:LED,100,000hours service life
7.Operating voltage:DC6.4V(Solar powered Way),recyclable batteries with the lightest environmental and long life.
8.Overall Size(mm): Φ220 by 233
9.Installation Size(mm): Φ190 by M10
10.Weight:2Kg
11.Emitting Color: Red
12.Ambient Temperature:-40℃~+60℃
Product Application
-large-scale port machinery
-large engineer machinery
-wind turbines
-Tall Buildings
Standard : ICAO,FAA,MH-T 6012-1999 Aviation Obstruction Light Technical Standards for Airfield Area of Civil Airports International Standard and Construction of Airports
FAims
To set the highest point and edge point of tall buildings for marking it to air traffic.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Intensity | ≥32.5cd |
| Standard | ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810 |
| Light source | LED |
| IP rating | IP65 |
| LED color | aviation red |
| Working mode | Steady-burning mode or Flash mode(20-60times/minute) |
| LED life-span | ≥100,000h |
| Power rating | 3W |
Packaging & Delivery time
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Dimension Drawing
Product Picture
Product Highlights
