High Transmittance Solar Warning Light For Large Engineer Machinery
Product Details
| Type: | LED Aviation Obstruction Lights | Input Voltage(V): | DC12V(Solar Powered Way) |
|---|---|---|---|
| Lamp Power(W): | 6 | IP Rating: | IP65 |
| Lamp Body Material: | SUS304 Stainless Steel | Emitting Color: | Red |
| Working Mode:: | Steady-burning Mode Or Flash Mode(20-60times/minute) | ||
| Highlight |
flashing solar lights,solar powered lights |
||
Product Description

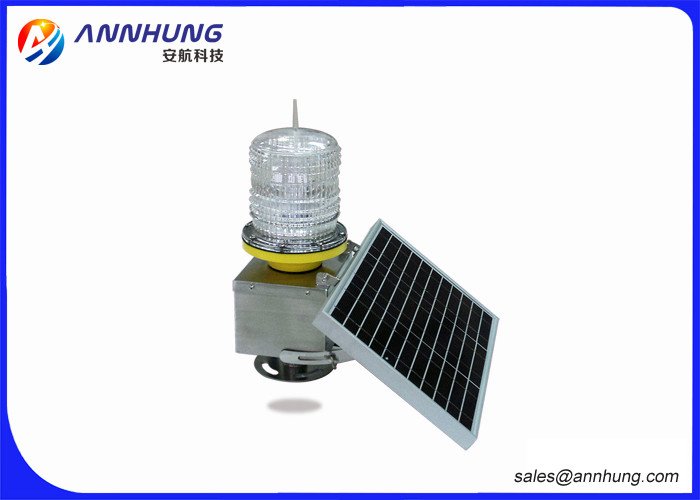

High Transmittance Solar Warning Light For Large Engineer Machinery
The battery of Low intensity Solar Aviation Obstruction Light adopts advance power management system, which can provide good protection when battery ’s voltage and temperature too high or too low,so it can improve the battery’s service life efficiently. It adopts low light but high efficient solar panels integrated design,cooperate with solar dedicated plumbic acid battery as power supply.
Product’s shell adopts SUS304 stainless steel material that has specifics of light weight and corrosion insistence. It's very convenient for installation and transportation.
Product Application
-High-rise Building
-marking towers (Telecom, GSM, Microwave & TV)
-High Pole
-Tower Crane
-large-scale port machinery
-large engineer machinery
-wind turbines
Advantage
1. PC material keep from stong impact, thermal stability, high transmittance.
2. Bird spike against bird drop.
3. International advanced solar panel reaching more than 10 years service life.
4. Comprehensive protection in voltage short circuit, over-voltage, floating Charge and temperature.
5. Major Maintenance Cost Saving, overload protection device inside light.
6.Strong anticorrosion, quake-proof protection and UV protection.
7. More than 7 days autonomy.(optional 15days)
8. Movable Panel for being convenient for customer choosing angle.
9. 3/4 inch installation way especially for tower or flag-pole installation way.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Product Descripton
| Description | Parameter |
|---|---|
| Light source | LED |
| Available color | aviation red (customized) |
| Working mode | Steady-burning mode or Flash mode(20-60times/minute) |
| Supply voltage | DC12V(Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| Standard | ICAO (Aerodromes Annex 14) Low-intensity Type B,FAA L-810 |
| LED life-span | ≥100,000h |
| Power rating | 6W |
| Intensity | ≥32.5cd |
| Ambient temperature | -40C ~ +60C |
| water proof | IP65 |
| Net Weight | 7.0kg |
| Material | Base:SUS304 stainless steel, housing: PC |
Dimension Drawing
Product Picture
