Double Low Intensity LED Solar Obstruction Light For Wind Turbines / High Rise Building
Product Details
| Input Voltage(V): | DC 6.4V (Solar Powered Way) | Lamp Power(W): | 3W |
|---|---|---|---|
| Overall Size(mm): | 330 By 158 By 340 | Lamp Body Material: | Die Casting Aluminum |
| Emitting Color: | Red | Working Mode:: | Steady-burning Mode Or Flashing Mode(20-60times/minute) |
| Highlight |
airport obstruction lights,solar powered lights |
||
Product Description
Double Low Intensity LED Solar Obstruction Light For Wind Turbines / High Rise Building
Product Application
AH-LS/T Low-intensity Double Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower,High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Main Parameter
1.Mode:AH-LS/T
2. Material:
-Housing: PC
-Base: SUS304 stainless steel
3.Autonomy(without sunlight):at least 5 days(Option 20days)
4.Power Consumption:3W
5.Overall Size(mm):330 by 158 by 340
6.Installation Size(mm): 3/4inch or 100 by 100 by 12
7.Weight:3Kg
8.Emitting Color: Red
9.Ambient Temperature:-40℃~+60℃
10.Wind load:80m/s
11.Protection Standard:IP65
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810 |
| Light source | LED |
| LED emittiing color | Red |
| Working mode | Steady-burning mode or Flashing mode(20-60times/minute) |
| Working voltage | DC 6.4V (Solar powered Way), recyclable batteries with the lightest environmental and long life. |
| LED life-span | ≥100,000h |
| Power rating | 3W |
| Intensity | 2,000cd(Night) ,20,000cd(Daytime) |
| Ambient temperature | -40C ~ +60C |
| Protection standard | IP65 |
| Net Weight | 3.0kg |
| Material | Base: Die casting aluminum , housing: PC |
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Dimension Drawing

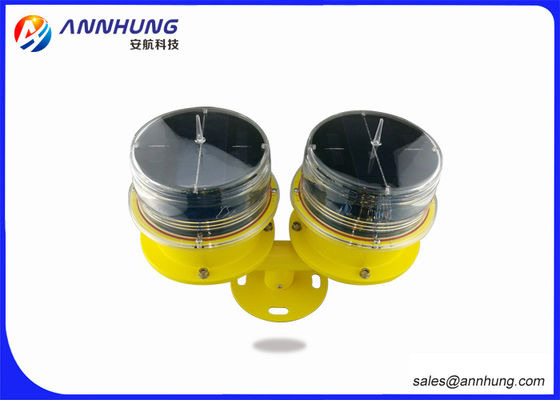

Product Picture
