Steady Burning and Flashing Solar Obstruction Light for High Pole

Minimum Order Quantity : 1 pc Price : Negotiable
Packaging Details : paper carton 1 piece/box Delivery Time : Shipped in 15 days after payment
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 1000 pcs per month
Place of Origin: Guangdong, China Brand Name: Anhang
Certification: ICAO Model Number: AH-LS/B

Detail Information

Light Source: LED Emitting Color: Red
Light Intensity: ≥ 32.5cd Weight: 2kg
Working Mode: Steady-burning Mode Or Flash Mode(20-60times/minute) Lamp Power: 3w
High Light:

airport obstruction lights


solar powered lights

Product Description


Steady Burning and Flashing Solar Obstruction Light for High Pole



Scope of Application


AH-LS/B Low-intensity Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.


Product Description




AH-LS/B Low-intensity Single Solar-Powered Aviation Light solar panel act as a photocell. It can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.




Description Parameter
Mode AH-LS/B
Standard ICAO FAA L-810 type B
Visible distance 3.2KM
Working mode Flashing mode or Steady-burning mode
Light source LED
Light intensity >32cd
Vertical angle >10°
Horizontal angle 360°
Service lifetime of LED 100, 000hours
Solar panel: Monocrystalline silicon, 4W
Battery lithium iron phosphate, 6.4V, 6Ah
Autonomy At least 5days (Option 20days)
Overall Size (mm) Φ220× 233
Installation Size Φ190 × M10
Net Weight 2Kg
Available Color Red, Green, Yellow (Amber), Blue or White
Ambient Temperature -55℃~+60℃
Wind load 80m/s
Control Way ON/OFF by solar panel as photocell. Light can work at night automatically by photocell.
Optional function Remote control, charge port






1.International advanced solar panel reaching at least 10 years service life.
2.Comprehensive protection in voltage short circuit, overload-voltage, floating Charge and temperature.
3.Built-in Solar Panel.
4.Strong anticorrosion , Rain and Snow, seismic resistance protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Clean, renewable, green and reliable energy source
7.Dusk-to-dawn operation
8. More than 5 days autonomy (optional 20days).
9. Recyclable batteries with the lightest environmental.
10. Small volume especially being suitable for Telecom Tower and Electric installation way.




Low-intensity Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3


Dimension Drawing


Steady Burning and Flashing Solar Obstruction Light for High Pole 0

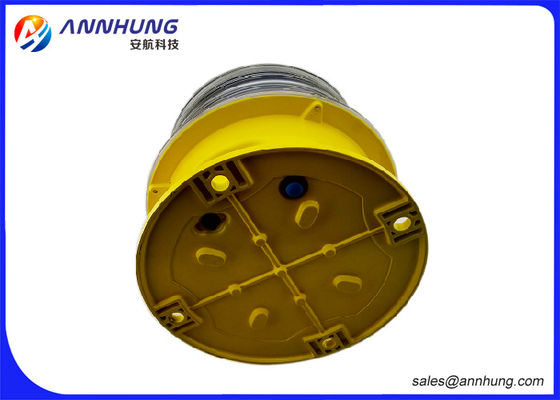

Product Picture


Steady Burning and Flashing Solar Obstruction Light for High Pole 1



Steady Burning and Flashing Solar Obstruction Light for High Pole 2
