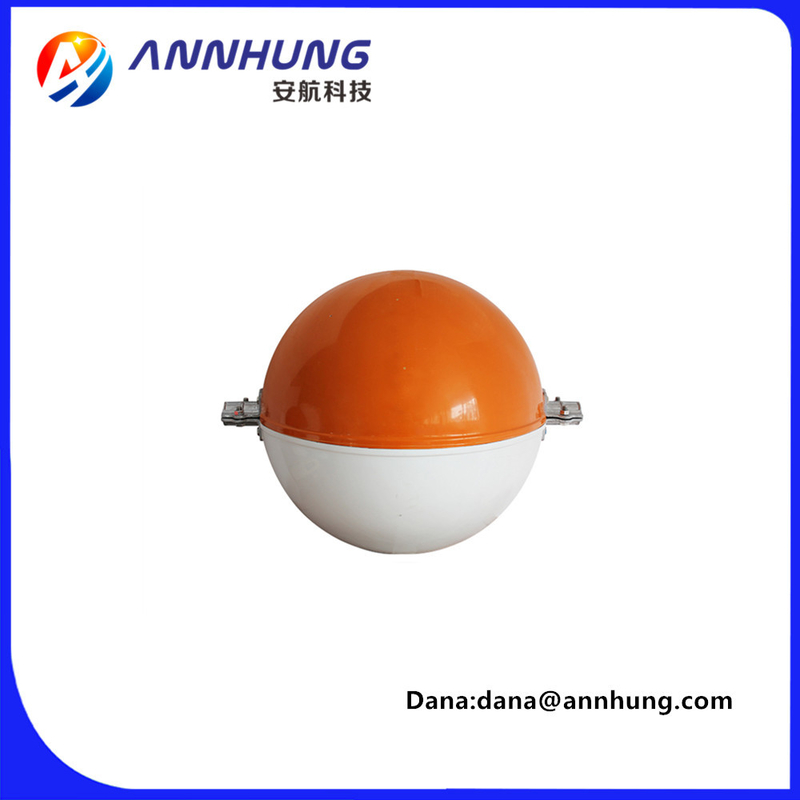

AH-AWS Aircraft Warning Sphere Designed to use for high-rise transmission lines, eg.110KV, 220KV, 500KV,
Transmission cables, river-crossing transmission lines to provide the warning marks. Keep the airplanes safe.
Products Description
Techonologied parameter:
Features Diameter of Aircraft Warning Sphere: θ600mm (Other diameter is available if request)
Color: Bright Orange , Red or White
Material: Fiber glass reinforced polyester resin Character of fiber glass: Tensile strength≥128Mpa Bending strength≥230Mpa Temperature resistant: -40℃~+90℃ Fastener: Aluminum material, M10 by 35, M10 by 40 There are rainwater drainage holes on sphere avoid the water stay inside the ball The uniformity of the sphere thickness make sure it’s table under aeolian vibration Weight of Sphere: 6. 3Kg Armor rod: aluminium alloy, 800mm Material of bolts nuts & washer: stainless steel Sphere thickness: 2. 3mm Conductor size: 10mm- 35mm(others are customized)
