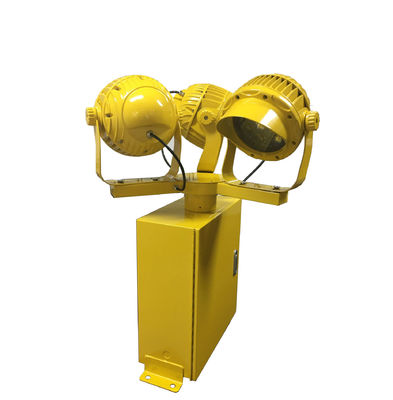

Airport Lighting, Rotating Beacon, Heliport Rotated Beacon Light
The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.
This Rotated beacons is for night operation as identification and location markers for airports.
Compliance
FAA L-801A
ICAO Annex 14 Volume I 5.3.3
Features
100,000 hour typical lamp life.
One white color, another yellow color
No maintenance
All moving parts are permanently lubricated.
Impedance-protected motor eliminates burnouts.
12RPM rotation, 24 flashes/minute.
Weatherproof stainless steel cabinet, powder-coated international yellow.
Application
Helipad/Heliport/Helideck
Airport
| SPECIFICATIONS |
AH-HP-R2 Airport Rotating Beacon |
| Light Characteristics |
|
| Light Source |
LED |
| Colors |
White and Yellow(others are optional) |
| Flash Characteristics |
24 flashes per minute |
| Light intensity |
≥2500cd |
| Operation Mode |
Steady burning |
| LED Life Experience(hours) |
>100,000 |
| Electrical Characteristics |
|
| Operating Voltage |
220/240AC |
| Circuit Protection |
Integrated |
| Physical Characteristics |
|
| Body Material |
UV protected Polycarbonate |
| Base Material |
Powder-coated stainless steel 304 |
| Mounting |
390×70×θ12 |
| Dimension(mm) |
566×260×740 |
| Weight(kg) |
22 |
| Product Life Expectancy |
Average 5 years
|
| Environmental Factors |
|
|
Ambient Temperature(℃)
-55℃~+70℃
|
-40~85 |
| Humidity |
10~90% |
| Wind Speed |
80m/s |
| Waterproof |
IP66 |
| Compliance |
|
| FAA |
FAA L-801A |
| ICAO |
ICAO Annex 14 Volume I 5.3.3
|
| Options Available |
|
