ICAO Standard Solar Airfield Light with UV protected Polycarbonate

Contact Now

ICAO Standard Solar Airfield Light with UV protected Polycarbonate

Name: ICAO Standard Solar Airfield Light with UV protected Polycarbonate
Brand: annhung
SKU: AH-SA/B
Price: 1 USD
Availability: InStock
Rating: 4.7 (146 reviews)

Minimum Order Quantity :	1	Price :	1-99USD/PC
Packaging Details :	Packaging Details:136 by 136 by 220 paper carton 1 piece/box	Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000Pieces for one month

Place of Origin:	Guangdong, China	Brand Name:	annhung
Certification:	ICAO, FCC, FAA, CE	Model Number:	AH-SA/B

Detail Information
Light Source:	LED	Available Colors:	Visible Range(NM)
Flash Characteristics:	Adjustable Steady/Flash Mode	Operation Mode:	Dusk-to-dawn Automatically (Built-in Photocell)
LED Life Experience(hours):	>100,000	Circuit Protection:	Integrated
Body Material:	UV Protected Polycarbonate	Base Material:	Powder-coated Die-casting Aluminum
Waterproof:	IP68
High Light:	airport led lighting , solar runway lights

Product Description

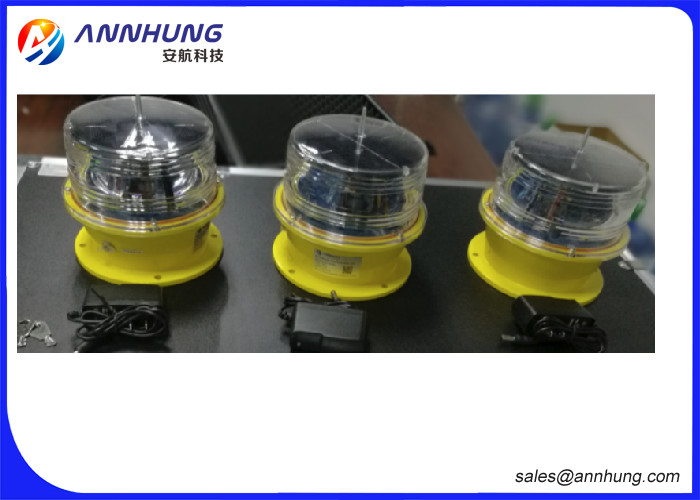

ICAO Standard Solar Airfield Light with UV protected Polycarbonate

Solar Heliport Landing Light
Solar Airport Light

Applications
AH-SA/B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA/B.

Datasheet: AH-SA-B Solar Airfied Light.pdf

Product Description

Compliance

l ICAO Annex 14

l FAA AC 150/5345

l CAP 437

Features

Electrical

l LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

Physical

l Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).

l PC housing, UV resistance, shockproof and corrosion proof.

l Bird deterrent spike

l Powder coated die casting aluminum base

l Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon

System design

l ON/OFF button interface located under base

l Light Turn on at night and closed at daytime automatically

Optional

l User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation

l External charger

l Wireless remote control

l NVG - compatible infrared (IR) LED

l GPS sync flashing

l Pilot to ground remote control

ICAO Standard Solar Airfield Light with UV protected Polycarbonate 0

Function

AH-SA/B Solar Airfield Light has one photocell. It can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.

Advantages
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating charge and temperature.
3.Built-in Solar Panel.
4. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Clean, renewable, green and reliable energy source.
7. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
8. At least 5 days autonomy.
9. Recyclable batteries with the lightest environmental.
10. Small volume especially being suitable for heliport portable using.
