NVG Portable Solar Airport Lighting for Threshold / Expedited Airfield Landing / Heliport Light
Product Details
| Type: | Solar Airport Lighting | Battery: | Lithium Ion Battery |
|---|---|---|---|
| IP Rating: | IP68 | Lamp Body Material: | Die Casting Aluminum |
| Emitting Color: | Red, Green, White, Yellow/ White, Yellow/ White, Yellow/ White, Red/ White( Customized) | Working Mode:: | Steady-burning |
| Highlight |
led airfield lighting,solar runway lights |
||
Product Description
NVG Solar Portable Airport Light for Threshold / Expedited Airfield Landing /Helipad Light
Application
Emergency operations, Helipads, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting, Threshold lighting and obstruction lighting.
Advantage
1. Self-contained and low maintenance: all components are incorporated within a compact, stand-alone unit.
2. Strong anticorrosion , Rain and Snow, anti-knock protection and UV protection.
3. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4. Clean, renewable, green and reliable energy source.
5. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
6. More than 5 days autonomy.
7. Recyclable batteries with the lightest environmental.
Function
1. Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
2. Optional wireless ON/OFF control provides on-demand operation from up to 3km away. Antenna is inside light base.
3. Optional Battery Charge port: 100~240VAC
4. Optional NVG-compatible infrared (IR) LEDs
Product Descripton
| Description | Parameter |
|---|---|
| Light source | LED |
| Available color | Red, green, white, yellow/ white, yellow/ white, yellow/ white, red/ white( Customized) |
| Working mode | Steady-burning mode or Flash mode |
| Standard | CAO Annex 14, Vol. 2 |
| Battery | Lithium ion battery, 3. 7V 10AH |
| LED life-span | ≥100,000h |
| Intensity | ≥32cd |
| temperature range | -40C ~ +60C |
| IP rating | IP68 |
| Net Weight | 2.0kg |
| Material | Base:Die casting aluminum, housing: PC |
Dimension Drawing

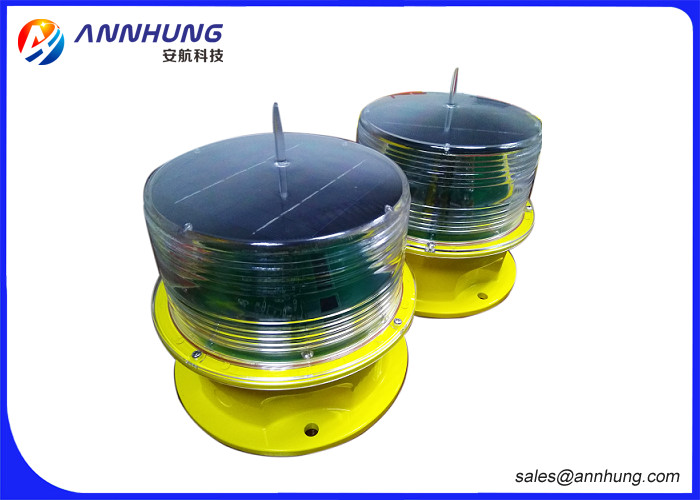

Product Picture
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
