Building Aircraft Aviation Obstruction Light Chimney 20 Times / Minute Flashing
Product Details
| Type: | Solar Aviation Obstruction Light Medium Intensity Red 2000cd | Color: | Red |
|---|---|---|---|
| Light Intensity: | 2000cd±25% | Flashing: | 20times/minute |
| Standard: | ICAO ANNEX 14, FAA L-810 | Mode: | Solar Panel As Photocell For Day/night Operation |
| Highlight |
airport obstruction lights,solar powered lights |
||
Product Description

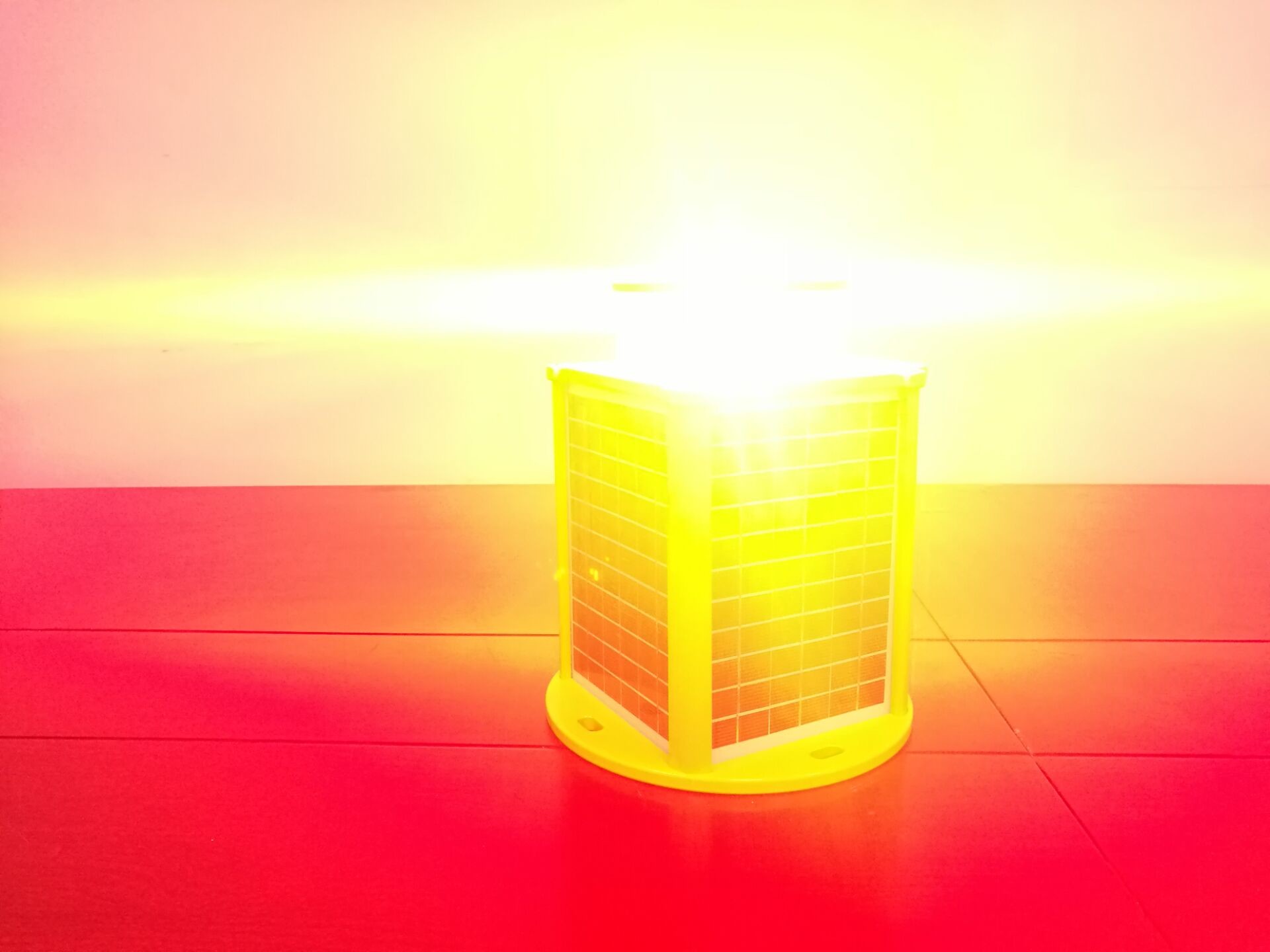

Solar Building Aircraft Aviation Obstruction Light Chimney LED Aviation Obstruction
This Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.
GPS device is optional for AH-MS/B, it make different lights flash synchronously no matter where those lights are.
Features
Electrical
1. Ultra high intensity CREE LED light source saving power
consumption and maintenance
Physical
1. UV & vibrations protected polycarbonate lens for converging light
2. Self-contained without external power supply, Cable cost saving &
cabling job saving, No wiring job, nice & easy installation
3. 4-side mono crystalline silicon solar panel, conversion efficiency is
better than poly crystalline silicon
4. Battery: VRLA (Valve-Regulated Lead Acid Battery)
Product Descripton
| SPECIFICATIONS | AH-MS/BD Medium-intensity Type B L864 Double Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | Ultra high intensity CREE LED |
| Emitting Color | Red |
| Intensity(cd) | 2000cd±25% |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥3 |
| Flash Characteristics | Flashing 20FPM, |
| Operation Mode | Main-standby, Dusk-to-Dawn operation |
| LED Life Experience(hours) | >100,000 |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 6×4=24W |
| Charging Regulation | Microprocessor controlled |
| Physical Characteristics | |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Installation Size | 220×220×M10 |
| Overall Size (mm) |
260×260×355 550 |
| Weight(kg) | 9 |
| Product Life Expectancy | Average 3 years |
| Waterproof | IP67 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 | |
| Medium-intensity Type B Obstacle Light | |
| FAA | L-864 |
| Optional | |
|
GPS Synchronization |
|
|
GSM cellphone monitoring |
|
|
NVG - compatible infrared (IR) LED |
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Packaging & Delivery time
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
