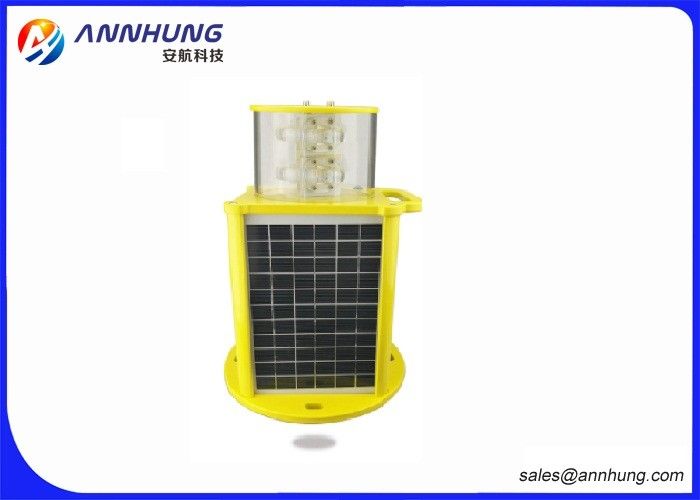

IP67 Waterproof LED Aviation Obstruction Light AH-MS/BD Medium Intensity Type B L864

Minimum Order Quantity : 1 Packaging Details : Packaging Details:136 by 136 by 220 paper carton 1 piece/box
Payment Terms : Western Union, MoneyGram, T/T, L/C Supply Ability : 1-688usd/pc
Place of Origin: Guangdong, China Brand Name: annhung
Certification: ICAO, FCC, CE, FAA Model Number: AH-MS/BD

Detail Information

Light Source: Ultra High Intensity CREE LED Emitting Color: Red
Intensity(cd): 2000cd±25% Horizontal Output(degrees): Vertical Divergence(degrees)
Vertical Divergence(degrees): ≥3 Flash Characteristics: Flashing 20FPM
Operation Mode: Main-standby, Dusk-to-Dawn Operation LED Life Experience(hours): >100,000
Operating Voltage(Vdc): 12 Solar Module Type: Mono Crystalline Silicon
Output(watts): 6×4=24W Charging Regulation: Microprocessor Controlled
Battery Type: Valve-Regulated Lead Acid Battery(VRLA) Nominal Voltage (V): 12
Battery Service Life: Average 3 Years Autonomy (hours): 150
Base Material: Powder-coated Die-casting Aluminum Lamb Body Material: UV Protected Polycarbonate
Weight(kg): 9 Product Life Expectancy: Average 3 Years
Waterproof: IP67
High Light:

airport obstruction lights

,

solar powered lights

Product Description

IP67 Waterproof LED Aviation Obstruction Light AH-MS/BD Medium Intensity Type B L864


Aircraft warning light. LED airport lamp. medium intensity. red Steady-burning obstruction beacon. compliant with ICAO,FAA,CAAC




Datasheet: AH-MS-BD Medium-intensity Type B L864 Double Solar...


Scope of Application

AH-LS/E Low-intensity Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High
Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.


Product Description


Function
AH-LS/E Low-intensity Single Solar-Powered Aviation Light has one photocell. Installed in the fuse, it can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.

Advantages
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3. Low power consumption profession flash switch.
4. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
5. Strong impact lamp shape with PC material.
6. Strong corrosion resistance and UV protection.
7. At least 7 days autonomy.(optional 15days)
8. Having lightning-protection function.
9. Side open of battery box can be open for maintenance convenience very easily.
10. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.


Main Parameter

Description Parameter
Mode AH-MS/BD
Light intensity ≥ 32.5cd
Working mode Steady-burning mode or Flash mode(20-60times/minute)
Light source LED
Service life of LED 100,000hours
Operating voltage

DC 12V (Solar powered Way),recyclable batteries with the
lightest environmental and long life.

Material
Housing PC
Base die casting aluminum
Autonomy(without sunlight) at least 7 days(Option 15days)
Power Consumption 5W

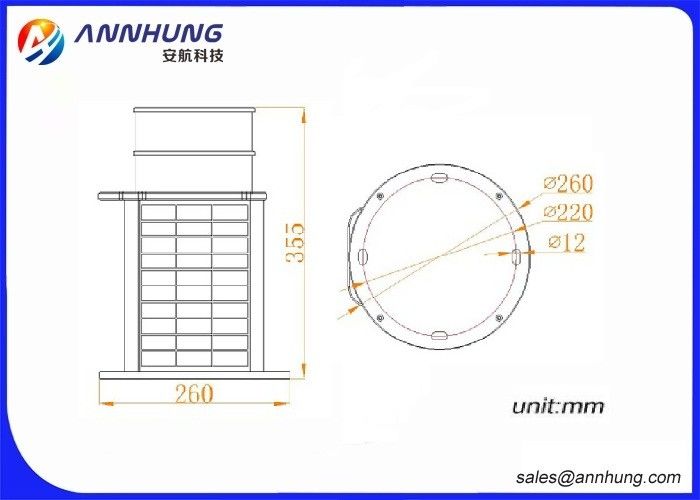

Overall Size(mm) 260 × 260× 340
Installation Size(mm) 220 × 220× M10
Weight 6Kg
Emitting Color Red
Ambient Temperature -40℃~+60℃
Wind load 80m/s
Protection Standard IP65


Compliance

Low-intensity Type A or Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
