Quality Red Flashing FAA L864 Double Solar Obstruction Light Type B For Electric Tower factory
<
Quality Red Flashing FAA L864 Double Solar Obstruction Light Type B For Electric Tower factory
>

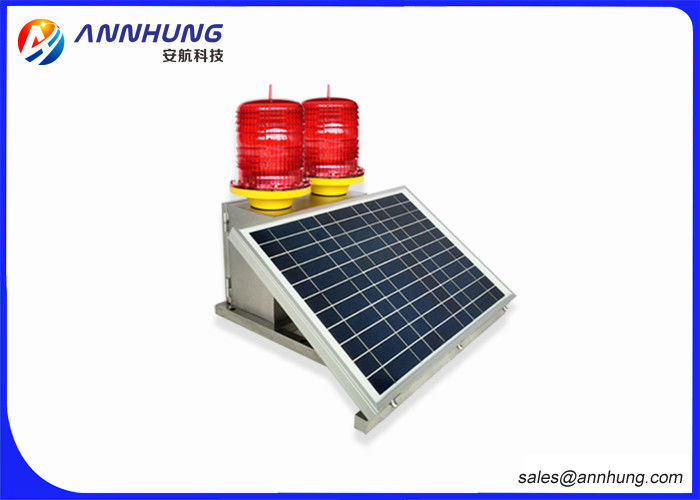

Red Flashing FAA L864 Double Solar Obstruction Light Type B For Electric Tower

Brand Name: Anhang
Model Number: AH-MS/D
Place of Origin: Guangdong, China
Certification: ICAO
Minimum Order Quantity: 1 pc
Price: Negotiable
Supply Ability: 1000 pcs per month

Product Details


Light Intensity: 2,000cd ±25% Working Mode: Flash Mode(20-60times/minute)
Light Source: LED Operating Voltage: DC 12V
Power Consumption: 60W Weight: 16KG
Emitting Color: Red Protection Standard: IP65
Highlight

flashing solar lights

,

solar powered lights

Product Description



Red Flashing FAA L864 Double Medium-intensity Type B Solar Aviation Obstruction Light





Advantages



1. International advanced solar panel reaching more than 10 years service life.
2. Comprehensive protection in voltage short circuit, over-voltage, floating Charge and temperature.
3. Low power consumption profession flash switch.
4. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
5. Strong impact lamp shape with PC material.
6. Strong corrosion resistance and UV protection.
7. More than 7 days autonomy.(optional 15days)
8. Having lightning-protection function.
9. Side open of battery box can be open for maintenance convenience very easily.
10. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor

.

Detail Description:



This product is single solar light. Installed in the fuse, it can control flash automatically when ambient brightness is lower than 50 cd/m2.This product can work at night and close during the day automatically by
Solar panel which function is equal to photocell sensor. Side on battery box can be opened to be convenient for maintenances.



Application:



Red Flashing FAA L864 Double Solar Obstruction Light Type B For Electric Tower





AH-MS/D Medium-intensity Double Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom,GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.



Specifications:



Description Parameter
Mode AH-MS/D
Light intensity 2,000cd ±25%
Working mode Flash mode(20-60times/minute)
Light source LED
Service life 100,000hours
Working way of two lights

Two light flashing by Main-standby way, Two lights flashing at the same or two lights

flashing 1.5 second interval.(Flash mode, three ways) Two light working by Main-standby way, Two lights working at the same time.(Steady-burning way, two ways)

Operating voltage

DC12V(Solar powered Way),recyclable batteries with the lightest

environmental and long life.

Material
Housing PC
Base SUS304 stainless steel
Autonomy(without sunlight) at least 7 days(Option 15days)
Power Consumption 60W
Overall Size(mm) 525 by 490 by 490
Installation Size(mm) 200 by 322 by 12
Mass 16Kg
Available Color Red
Ambient Temperature -40℃~+60℃
Wind load 80m/s
Protection Standard IP65





Dimension Drawing



Red Flashing FAA L864 Double Solar Obstruction Light Type B For Electric Tower





Product Picture



Red Flashing FAA L864 Double Solar Obstruction Light Type B For Electric Tower



Red Flashing FAA L864 Double Solar Obstruction Light Type B For Electric Tower



Product Highlights

Red Flashing FAA L864 Double Medium-intensity Type B Solar Aviation Obstruction Light Advantages 1. International advanced solar panel reaching more than 10 years service life. 2. Comprehensive protection in voltage short circuit, over-voltage, floating Charge and temperature. 3. Low power ...
