Quality Red Color Low Intensity  Solar Obstruction Light  For Electric Tower And High - Rise Building factory
Quality Red Color Low Intensity  Solar Obstruction Light  For Electric Tower And High - Rise Building factory
Quality Red Color Low Intensity  Solar Obstruction Light  For Electric Tower And High - Rise Building factory
>

Red Color Low Intensity Solar Obstruction Light For Electric Tower And High - Rise Building

Brand Name: ANNHUNG
Model Number: AH-LS/L
Place of Origin: Shenzhen, China
Certification: ICAO
Minimum Order Quantity: 1
Price: Negotiable

Product Details


Emitting Color: Red Light Source: LED
Lamp Power: 1W IP Rating: IP68
Light Intensity: ≥ 32.5cd(Flash Mode) Solar Panel: Monocrystalline Silicon
Protection Standard: IP68 Operating Voltage: 3.7VDC
Highlight

flashing solar lights

,

solar powered lights

Product Description



Red White Low-intensity Solar Aviation Obstruction Warning Light





Detail Description:



AH-LS/L Low-intensity Single Solar-Powered Aviation Light has one photocell. It can work alone automatically at night by photocell and close during the day.



Application:



Red Color Low Intensity  Solar Obstruction Light  For Electric Tower And High - Rise Building



AH-LS/L Low-intensity Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.



Specifications:



SPECIFICATIONS LS/L Solar Powered Aviation Obstruction Light
Light Characteristics
Light Source LED
Available Colors Red, Green, Yellow (Amber), Blue or White
Intensity(cd) ≥ 32.5cd(Flash mode)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) >10
Reflector Type Fresnel Lens
Flash Characteristics Flashing mode or Steady-burning
Operation Mode Dusk-to-dawn Automatically as standard. 24hours operation as option.

LED Lifetime

Experience(hours)

>100,000
Electrical Characteristics
Supply Voltage DC3.7V, recyclable batteries with the lightest environmental and long life
Power(W) 1
Circuit Protection Integrated
Temperature Range(℃) -40~60
Physical Characteristics
Body Material Polycarbonate
Base Material Die-casting aluminum
Mounting Φ140 by M6
Height(mm) 162
Width(mm) 162
Depth(mm) 160
Mass(kg) 1
Product Life Expectancy 5 years plus
Environmental Factors
Humidity 10%-95%
Wind Speed 80m/s
Waterproof IP68
Compliance
ICAO

Low-intensity Solar-Powered Aviation

Obstruction Light, ICAO Annex 14 Volume

1,'Aerodrome Design and Operations’

Forth edition July 2004,table6.3

FAA Low-intensity Type A or Type B FAA L-810





Dimension Drawing



Red Color Low Intensity  Solar Obstruction Light  For Electric Tower And High - Rise Building

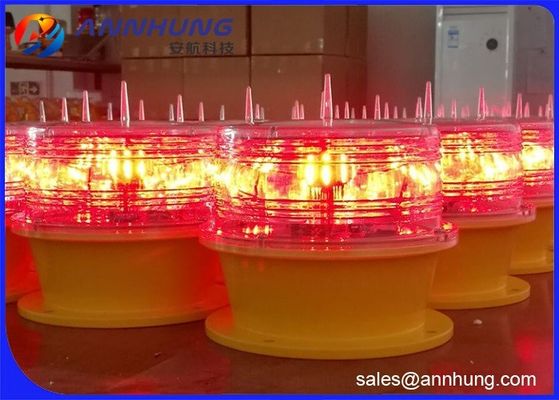

Product Picture





Red Color Low Intensity  Solar Obstruction Light  For Electric Tower And High - Rise Building





Red Color Low Intensity  Solar Obstruction Light  For Electric Tower And High - Rise Building

Product Highlights

Red White Low-intensity Solar Aviation Obstruction Warning Light Detail Description: AH-LS/L Low-intensity Single Solar-Powered Aviation Light has one photocell. It can work alone automatically at night by photocell and close during the day. Application: AH-LS/L Low-intensity Solar-Powered Aviation ...
