Solar Powered Aviation Lights
>
|
| Place of Origin | Guangdong, China |
| Brand Name | Anhang |
| Certification | ICAO |
| Model Number | AH-MS/B |
LED Solar Powered Aviation Lights 2000 cd Intensity Flashing with Red Color
Advantage:
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3. Low power consumption profession flash switch.
4. International-advanced high power LED with high brightness and service life of light source reaching 100000hours.
5. Strong impact lamp shape with PC material.
6. Strong corrosion resistance and UV protection.
7. At least 7 days autonomy.(optional 15days)
8. Having lightning-protection function.
9. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
Detail Description:
This product is single solar light. This product can work at night(＜50cd/m²) and close during the day automatically by Solar panel whichfunction is equal to photocell sensor.
Application:
AH-MS/B Medium-intensity Type B Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom,GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Specifications:
| SPECIFICATIONS | AH-MS/B Medium-intensity Type B Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red |
| Intensity(cd) | 2,000cd ±25% |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | Flashing mode(20-60times/minute) |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC 12V |
| Power(W) | 20W |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -40~60 |
| Physical Characteristics | |
| Body Material | PC |
| Base Material | SUS304 stainless steel |
| Mounting | 200 by 322 by 12 |
| Height(mm) | 525 |
| Width(mm) | 490 |
| Depth(mm) | 490 |
| Mass(kg) | 14.6 |
| Product Life Expectancy | 5 years plus |
| Environmental Factors | |
| Humidity | 0~90% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Medium-intensity Type B Solar Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3 |
| FAA | Medium-intensity Type B and FAA L-864 |
Dimension Drawing

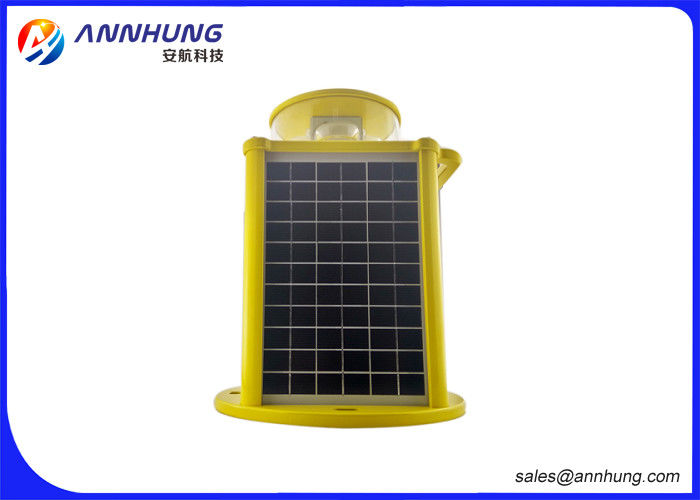

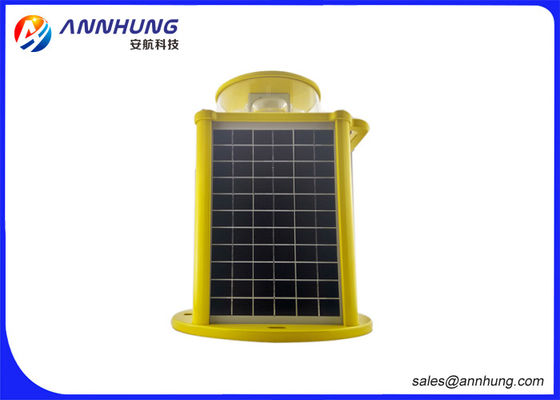

Product Picture
