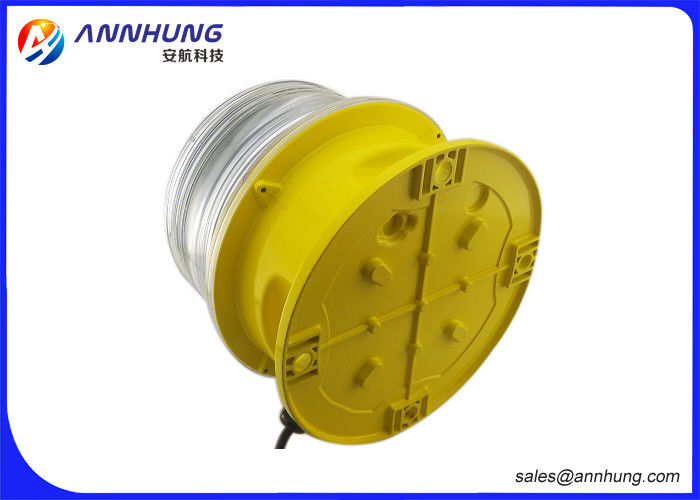

AC220V IP65 LED Aircraft Warning Lights 60W Power consumption
Product Details
| Type: | LED Aviation Obstruction Lights | Input Voltage(V): | AC220V (option Voltage,eg.AC120V,AC110,DC48V) |
|---|---|---|---|
| Working Mode: | Flashing Mode(20times/minute(Night); 40times/minute(Daytime)) | IP Rating: | IP65 |
| Base: | Die Casting Aluminum | Emitting Color: | Red (Night); White (Daytime) |
| Ambient Temperature: | -40℃~+60℃ | Power Consumption: | 60W |
| Highlight |
AC220V LED Aircraft Warning Lights,IP65 Aviation Warning Lights,60W Warning Light Aircraft |
||
Product Description
AC220V IP65 LED Aircraft Warning Lights 60W Power Consumption
Red LED Medium intensity type B Aviation Warning Light
Product Application
-High-rise Building
-High Chimney
-Marking towers (Telecom, GSM, Microwave & TV)
-High Pole
-Tower Crane
-Wind Tubinebridge
-Large-scale port machinery
-Large engineer machinery and wind turbines.
Packaging & Delivery
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO (Aerodromes Annex 14) Medium-intensity Type B & Type A,FAA L-864 & L-865 |
| Vertical degree | 3° |
| Light source | LED |
| Horizontal degree | 360° |
| LED color | Red (Night); White (Daytime) |
| Working mode | Flashing mode(20times/minute(Night); 40times/minute(Daytime)) |
| Operating voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| LED life | ≥100,000h |
| Power consumption | 60W |
| Light Intensity | 2,000cd(Night) to 20,000cd(Daytime) |
| Operating temperature | -40℃~+60℃ |
| IP Protection | IP65 |
| Weight | 3.50kg |
| Material | Base:Die casting aluminum, housing: PC |
Product Highlights
