IP68 2 Nautical Miles LED Marine Lanterns with Solar Panel and IALA Standard
  • IP68 2 Nautical Miles  LED Marine Lanterns with Solar Panel and IALA Standard
  • IP68 2 Nautical Miles  LED Marine Lanterns with Solar Panel and IALA Standard
  • IP68 2 Nautical Miles  LED Marine Lanterns with Solar Panel and IALA Standard
  • IP68 2 Nautical Miles  LED Marine Lanterns with Solar Panel and IALA Standard

IP68 2 Nautical Miles LED Marine Lanterns with Solar Panel and IALA Standard

Place of Origin Shenzhen, China
Brand Name ANNHUNG
Certification ICAO
Model Number AH-LS/C
Product Details
Flash Rate::
Flashing Mode Or Steady-burning Mode
Light Source::
LED
Power Consumption:
1W
Weight:
1kg
Wind Load:
80m/s
Light Intensity:
1cd(1NM),5cd(2NM)
Operating Voltage:
DC3.2V
Control Way:
Photocell. Light Can Work At Night Automatically By Photocell.
Name:
IP68 2 Nautical Miles LED Marine Lanterns With Solar Panel And IALA Standard
Highlight:

solar airfield lighting

,

led navigation lights

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
paper carton 1 piece/box
Delivery Time
Shipped in 15 days after payment
Payment Terms
T/T, Western Union
Supply Ability
1000 Pieces Per Month
Product Description



IP68 2 Nautical Miles LED Marine Lanterns with Solar Panel and IALA Standard





Detail Description:



1.Product Name: Marine Lanterns

2.Mode: AH-LS/M

3.Standard:IALA

4.Light intensity:1cd(1NM),5cd(2NM)

5.Working mode:Flashing mode or Steady-burning mode

6.Light source: LED

7.Service life of LED: ≥100,000hours

8.Operating voltage: DC3.2V, recyclable batteries with the lightest environmental and long life.

9.Control Way: photocell. Light can work at night automatically by photocell.

10.Autonomy(without sunlight):at least 5 days(Option 20 days)



Application:



IP68 2 Nautical Miles  LED Marine Lanterns with Solar Panel and IALA Standard 0



High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines



Specifications:



SPECIFICATIONS LED Solar Powered Marine Lantern
Light Characteristics
Light Source LED
Emitting Colors Yellow, Green, White and Red
Intensity(cd) ≥ 32.5cd(Flash mode)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) >10
Reflector Type Fresnel Lens
Flash mode Flashing mode or Steady-burning
Operation Mode Dusk-to-dawn Automatically as standard. 24hours operation as option.

LED Life-span

Experience(hours)

>100,000
Electrical Characteristics
Operating Voltage DC12V
Power consumption(W) 1
Circuit Protection Integrated
Temperature Range(℃) -55~70
Physical Characteristics
Body Material Polycarbonate
Base Material Die-casting aluminum
Mounting Φ140 by M6
Height(mm) 136
Width(mm) 136
Depth(mm) 220
Mass(kg) 1
Product Life Expectancy 5 years plus
Environmental Factors
Humidity 10%-95%
Wind Speed 80m/s
Waterproof IP68
Compliance
ICAO

Low-intensity Solar-Powered Aviation

Obstruction Light, ICAO Annex 14 Volume

1,'Aerodrome Design and Operations’

Forth edition July 2004,table6.3

FAA Low-intensity Type A or Type B FAA L-810





Dimension Drawing



IP68 2 Nautical Miles  LED Marine Lanterns with Solar Panel and IALA Standard 1

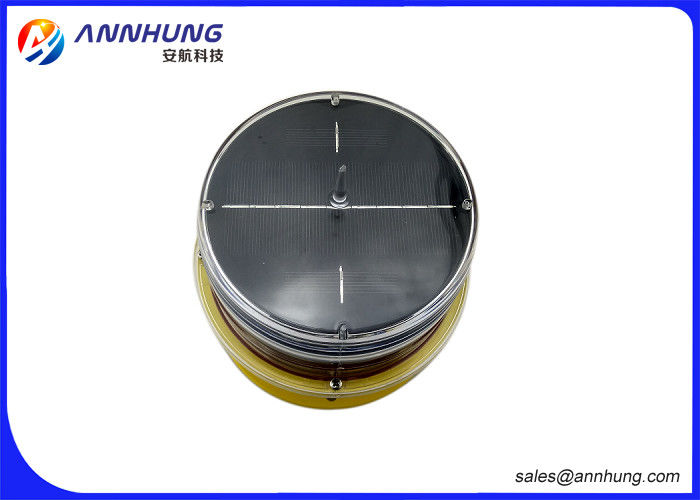

Product Picture





IP68 2 Nautical Miles  LED Marine Lanterns with Solar Panel and IALA Standard 2





IP68 2 Nautical Miles  LED Marine Lanterns with Solar Panel and IALA Standard 3
