LED Aircraft Lights For High - Rise Building Aviation Obstruction Light
Product Details
| Name: | LED Aircraft Lights For High - Rise Building Aviation Obstruction Light | Input Voltage(V): | AC220V (option Voltage,eg.AC120V,AC110,DC48V) |
|---|---|---|---|
| Working Mode: | Flash Mode(40 To 60times/minute) | IP Rating: | IP65 |
| Base: | Die Casting Aluminum | Emitting Color: | White |
| Ambient Temperature: | -40℃~+60℃ | Power Consumption: | 100W |
| Light Intensity: | 200000cd At Daytime | ||
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description

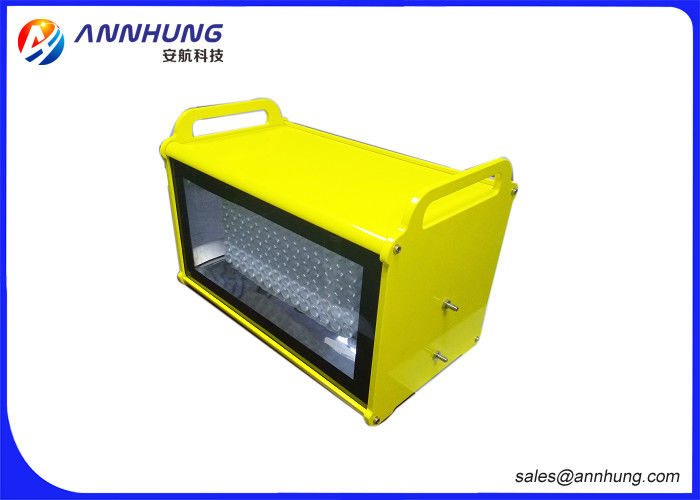

LED Aircraft Lights For High - Rise Building Aviation Obstruction Light
Product Application
High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.
Features
Electrical
l CREE ultra high intensity LED as light source saving power
l Power supply available in DC(48V) or AC(110V, 240V)
Physical
l Unique design and UV protected polycarbonate lens for converging light and saving LED power
l UV protection Powder coated bright yellow color base make better visibility
l Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
l
Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light
System design
l Built-in photocell for day/twilight/night operation
l Surge and lightning protection
Optional
l Alarm contact for remote monitoring
l Infrared LED for pilot using NVG
l GSM cellphone monitoring
l RS485 communication part for monitoring
l User adjustable flashing rate(40, 50, 60 flashes/minute)
l GPS synchronization
Packaging & Delivery
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Light video:
Product Descripton
| Description | Parameter |
|---|---|
| Standard: | ICAO (Aerodromes Annex 14) High-intensity Type A ,FAA L-856 |
| Vertical degree | 120° |
| Light source | LED |
| Horizontal degree | 360° |
| LED color | White |
| Working mode | Flash mode(40 to 60times/minute) |
| Working voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| LED life | ≥100,000h |
| Power | 100W |
| Intensity |
-2,000cd (Night) -20,000cd (Twilight) -200,000cd(Daytime) |
| Operating temperature | -40℃~+60℃ |
| IP Protection | IP65 |
| Weight | 10kg |
| Material | Base:Die casting aluminum, housing: PC |
Datasheet download: AH-HI-A0 High-intensity Type A L856 Aviation Obstr...
