Low Intensity LED Obstruction Light For Power Plant Chimneys / Civil Airports
Product Details
| Type: | LED Aviation Obstruction Lights | Input Voltage(V): | AC220V (option Voltage,eg.AC120V,AC110,DC48V) |
|---|---|---|---|
| Lamp Power(W): | 3 | IP Rating: | IP65 |
| Lamp Body Material: | Aluminum Alloy | Emitting Color: | Red |
| Working Mode:: | Steady Burning Or Flashing | International Standard: | ICAO( Annex 14) FAA L-810 |
| Highlight |
led warning lights,airplane signal lights |
||
Product Description
Low Intensity LED Obstruction Light For Power Plant Chimneys / Civil Airports
Product Application
Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO(Aerodromes Annex 14) and FAA-L810 |
| Vertical angle | ≥10° |
| Light source | LED |
| Horizontal angle | 360° |
| LED emitting color | aviation red |
| Working mode | Steady burning or flashing(flashing rate can be selected) |
| Working voltage | AC110V~AC240V(Option:DC48V) |
| LED life-span | ≥100,000h |
| Power | 3W |
| Intensity | ≥32.5cd(Option 10cd,50cd,80cd,100cd) |
| Operating temperature | -40C ~ +70C |
| Protection standard | IP65 |
| Net Weight | 1.0kg |
| Material | Base:Die casting aluminum, housing: PC |
Dimension Drawing

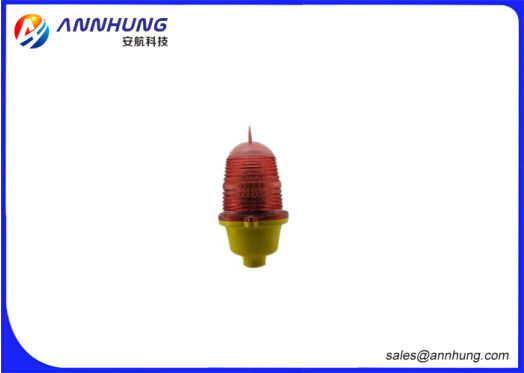

Product Picture
