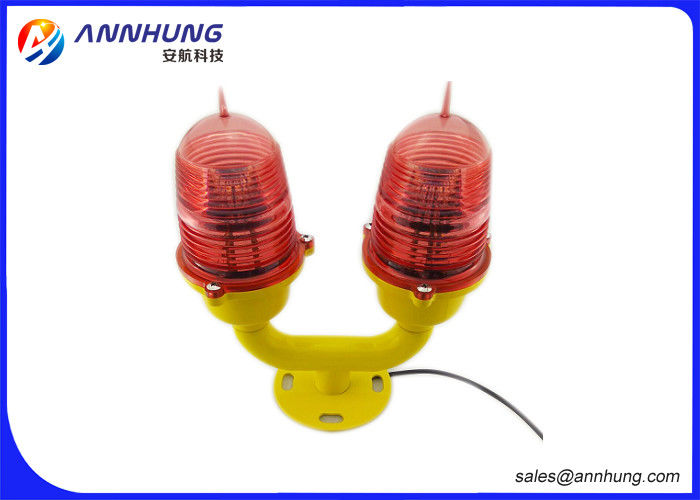

Double Aeronautical Obstruction Light
Product Details
| Weight: | 2kg | Color: | Red |
|---|---|---|---|
| Overall Size: | 258 By 136 By 320 | Light Intensity: | ≥ 32.5cd(Option 10cd,50cd,80cd,100cd) |
| International Standard: | ICAO Annex 14, FAA L810 | Products Name: | Double Aviation Obstruction Light |
| Certification: | CE, RoHS, UL | Working Mode: | Flashing( 20times/minute As Standard) Or Steady Adjustable |
| Highlight |
tower obstruction lighting,led obstruction light |
||
Product Description
LED Red Low-intensity Double Aeronautical Light
Advantage:
1.Five Years Warranty Period.
2.There is one switch converting between Flasing mode and Steadyburning mode.
3.Free maintenance and 3/4 inch or 1inch installation size being suitable for flag-pole or tower installation way.
4.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
5.Strong corrosion resistance, Shock and Vibrations protection and UV protection.
6.Major Maintenance Cost Saving, Surge protection device inside light.
7.About 96% less power than 116W incandescent light.
8.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
9.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
10.Bird spike against bird drop.
11.PC material with good impact protection strength, thermal stability, high transmittance.
Detail Description:
This product is the double light with Photocell. It can work at night and close during the day automatically by photocell. There are two lights. Main-standby way. One works, the other is for standby. When main light is broken, standby light can work automatically.
Application:
This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a
steady or flashing red safety light.
Specifications:
| SPECIFICATIONS | AH-LI/D Low-intensity Double Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red |
| Intensity(cd) | ≥32.5(option 10cd, 50cd, 80cd,100cd) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | Flashing( 20times/minute as standard) or Steady adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. 24hours operation as option. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| Power(W) | 4 |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -40~70 |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | 3/4inches or 1 inches |
| Height(mm) | 258 |
| Width(mm) | 136 |
| Depth(mm) | 320 |
| Mass(kg) | 2 |
| Product Life Expectancy | 5 years plus |
| Environmental Factors | |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth0 edition July 2004, table 6.3 |
| FAA | L-810 Steady-burning Red Aviation Obstruction Light |
