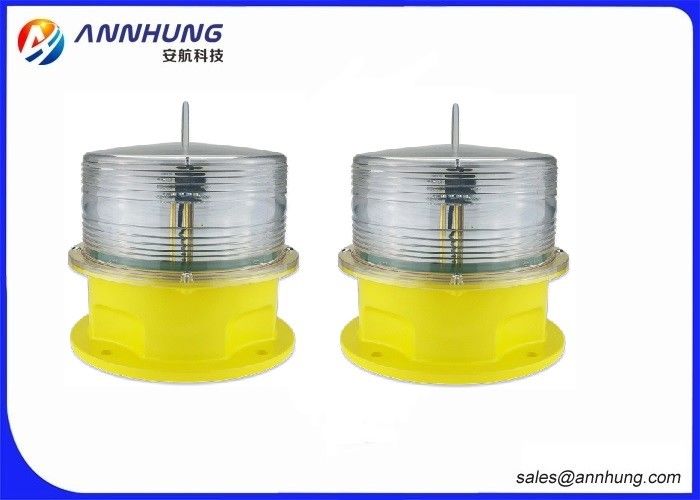

Solar Powered LED Marine Lantern
Product Details
| Light Source: | LED | Emitting Color: | Red, Green, Yellow (Amber), Blue Or White |
|---|---|---|---|
| Weight: | 2.3kg | Optional: | 256 Light Characters |
| Lamp Power: | 3w | Light Intensity: | 1cd(1NM),5cd(2NM), 15cd(3NM) |
| Highlight |
solar airfield lighting,led navigation lights |
||
Product Description
Remote Monitoring Solar Powered LED Marine Lanterns
Applications
AH-LS/C-1 navigation light applying to ocean buoy, river buoy, aquaculture, offshore oil platform, port or other fixing and floating aids to naviation.
Product Description
Advantages
1. Clean, renewable, green and reliable energy source.
2. International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100000hours.
3. Comprehensive protection in short-voltage,over-voltage,floating charge and temperature.
4. At least 5 days autonomy without sunshine (Option 20days).
5. Strong corrosion resistance,Rain and Snow,Shock and Vibrations protection and UV protection.
6. Bird spike against bird drop.
7. Dusk-to-dawn operation: photocell. Light can work at night automatically by photocell.
8. Based on LED technology ,comply to IALA Recommendations E-200-1.
9. Recyclable batteries with the lightest environmental.
10. IP68 protection standard.
11. Up to 3 Nautical Miles (Tc =0.74)
Main Parameter
| Description | Parameter |
| Mode | AH-LS/C-1 |
| Standard | IALA |
| Visible distance | Up to 3 Nautical Miles |
| Working mode | Flashing mode or Steady-burning mode |
| Light source | LED |
| Light intensity | 1cd(1NM),5cd(2NM), 15cd(3NM) |
| Vertical degree | >9° |
| Horizontal Degree | 360° |
| Service life of LED | 100, 000hours |
| Operating voltage | DC3.7V |
| Autonomy | At least 5days (Option 20days) |
| Overall Size (mm) | Φ220 233 |
| Installation Size | Φ190 × M10 |
| Weight | 2.3Kg |
| Emitting Color | Red, Green, Yellow (Amber), Blue or White |
| Ambient Temperature | -55℃~+60℃ |
| Wind load | 80m/s |
| Control Way | photocell. Light can work at night automatically by photocell. |
About us
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website: www.annhung.com www.ahicao.com
Option Function
1. Remote Control Function. Turn on and off lights open place in 3km without obstacle (effective distance) by Remote controller.
2. GPS Syn Function. All Marine Lanterns can flash at the same time by GPS.
3. Adjustable 366 characters.
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf
