ICAO Aluminum 10cd 32cd Solar Aviation Obstruction Light
Contact Person : Alice
Phone Number : +86-13260726316
WhatsApp : +8613260726316
|Minimum Order Quantity :||1 PC||Price :||Negotiable|
|Packaging Details :||paper carton 1 piece/box||Delivery Time :||Shipped in 15 days after payment|
|Payment Terms :||T/T, Western Union, MoneyGram||Supply Ability :||1000 pcs per month|
|Place of Origin:||Guangdong, China||Brand Name:||Ahhang|
|Light Source:||LED||Supply Voltage:||DC12V|
|Working Mode:||Steady-burning Mode Or Flash Mode(20-60times/minute)||Power Consumption:||6W|
solar tower light,
solar powered led flashing lights

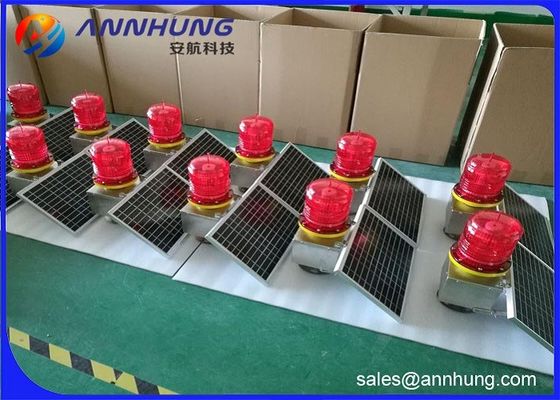

Low Intensity LED Solar Aviation Obstruction Light For Wind Turbine / High Chimney
Scope of Application
AH-LS/S Low-intensity Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
|Light intensity||≥ 32.5cd|
|Working mode||Steady-burning mode or Flash mode(20-60times/minute)|
|Light source||LED,100,000hours service life|
DC12V(Solar powered Way),recyclable batteries with the
lightest environmental and long life.
|Base||SUS304 stainless steel|
|Autonomy(without sunlight)||at least 7 days(Option 20days)|
|Overall Size(mm)||410 by 350 by 425|
AH-LS/S Low-intensity Single Solar-Powered Aviation Light has one photocell. Installed in the fuse, it can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.
1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird nesting.
3. International advanced solar panel reaching at least 10 years service life.
4. Comprehensive protection in voltage short circuit, over-voltage, floating Charge and temperature.
5. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
6. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
7. Major Maintenance Cost Saving, Surge protection device inside light.
8. Strong anticorrosion , anti seismic protection and UV protection.
9. More than 7 days autonomy (optional 15days)
10. Movable Panel for being convenient for customer choosing angle.
11. 3/4 inches installation way especially for tower or flag-pole installation way.
Low-intensity Type A or Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
