LED Marine Lantern
>
|
| Place of Origin | Guangdong, China |
| Brand Name | ANNHUNG |
| Certification | IALA，CE, IP68 |
| Model Number | AH-ML-S6 |
6 Nautical Miles High Bright Solar LED Marine Lantern Strong Anticorrosion for Buoy
Solar powered marine navigation lantern,
solar marine lantern,
self contained marine lantern, IALA.
Application of LED marine lantern
AH-ML-S6 navigation light applying to ocean buoy, river buoy, aquaculture, offshore oil platform, port or other fixing and floating aids to naviation.
Advantages of LED marine lantern
1.Visual distance Up to 8 Nautical Miles (Tc =0.74)
2.Based on LED technology and its color comply to IALA Recommendations E-200-1.
3.Bird spike against bird drop.
4.Comprehensive protection in short circuit-voltage,overload-voltage,floating charge and temperature.
5.International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6.Strong anticorrosion ,Rain and Snow,anti-knock protection and UV protection.
7.Clean, renewable, green and reliable energy source.
8.Dusk-to-dawn operation: photocell. Light can work at night automatically by photocell.
9.At least 5 days autonomy without sunshine (Option 20days).
10.Recyclable batteries with the lightest environmental.
11.IP68 protection standard, Full sealing structure.
Main Parameter of LED marine lantern
| Description | Parameter |
| Mode | AH-ML-S6 |
| Standard | IALA |
| Visible range | Up to 8 Nautical Miles |
| Working mode | IALA flashing characters |
| Light source | LED |
| Light intensity | 15cd (3NM), 35cd (4NM), 75cd (5NM),150cd (6NM) |
| Vertical angle | >9° |
| Horizontal angle | 360° |
| Service lifetime | 100, 000hours |
| Working voltage | DC12V, recyclable batteries with the lightest environmental and long life |
| Battery capacity | 12V |
| Autonomy | At least 5days |
| Overall Size (mm) | 250 by 250by 370 |
| Installation Size | 200 by 200by M10 |
| Mass | 5.8Kg |
| Available Color | Red, Green, Yellow (Amber), Blue or White |
| Temperature range | -55℃~+60℃ |
| Wind load | 80m/s |
| Control Way | photocell. Light can work at night automatically by photocell. |
| Optional | GPS sync flashing |
Dimension Drawing

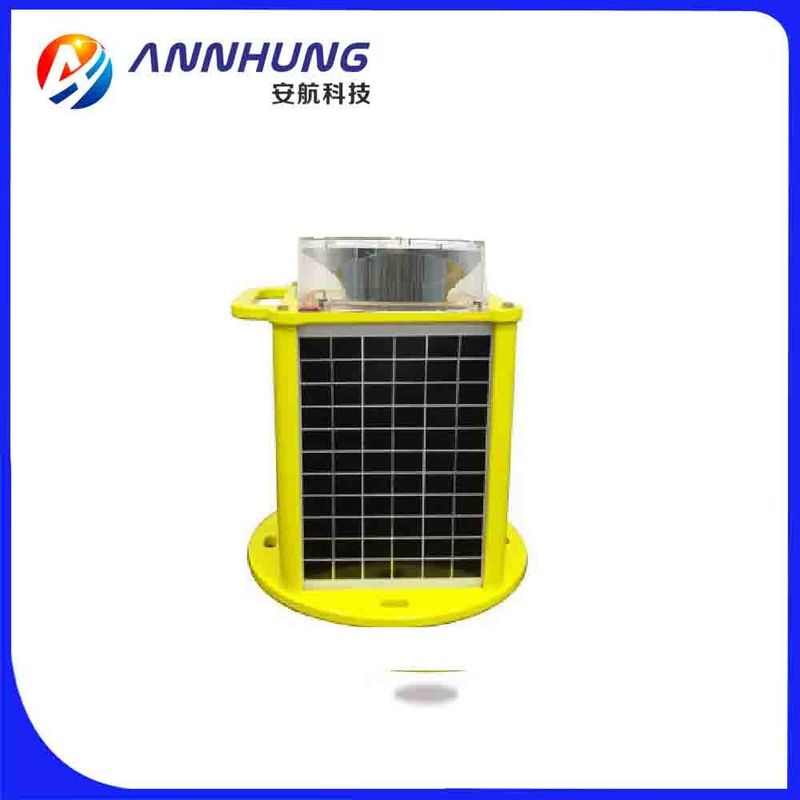

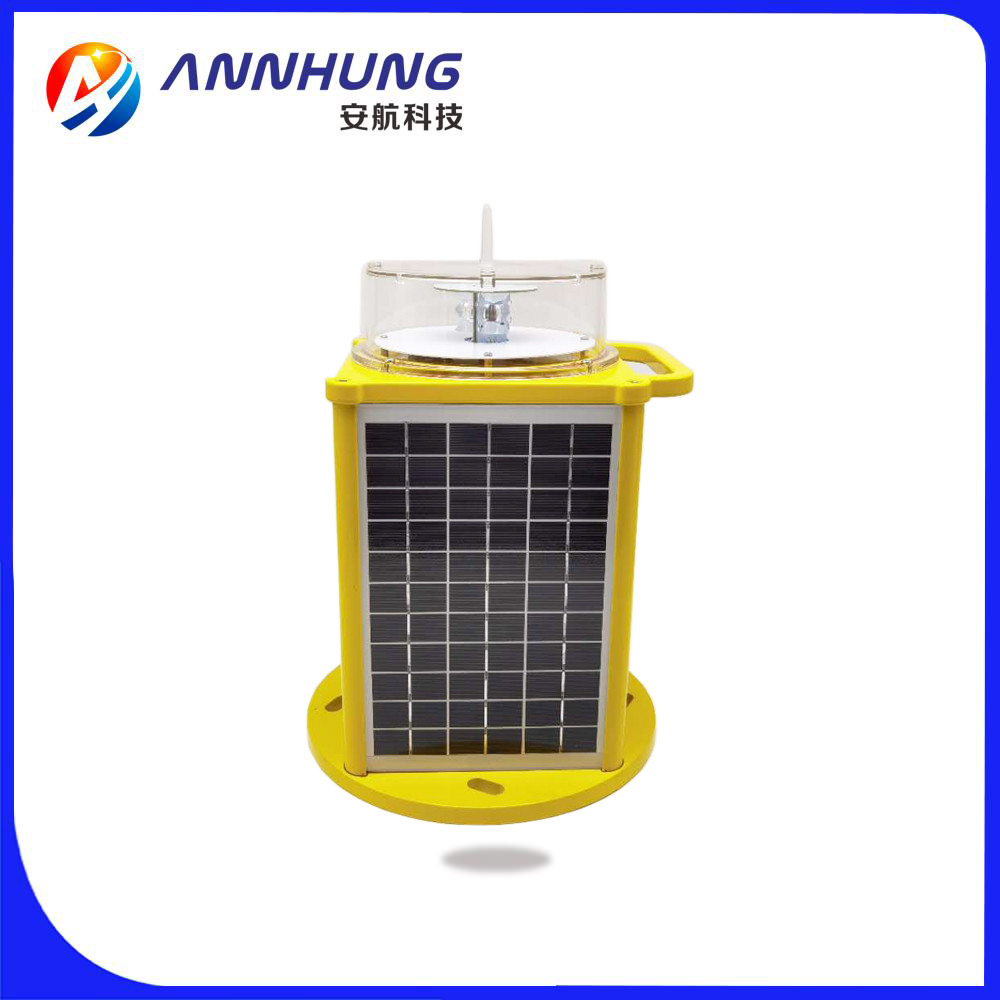

Product Picture
Compliance
IALA E-200-1
Features
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
PC housing, UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
ON/OFF button interface
System design
Solar panel as photocell for day/night operation(dusk to dawn)
The flashing rate is adjust by IR programmer
OptionalExternal battery charger
GPS Sync flashing
Datasheet download: download AH-ML-S6 LED Solar Powered Marine Lantern...
