Low Intensity Light / Double LED Aviation Obstruction Light for Buildings
  • Low Intensity Light / Double LED Aviation Obstruction Light for Buildings
  • Low Intensity Light / Double LED Aviation Obstruction Light for Buildings
  • Low Intensity Light / Double LED Aviation Obstruction Light for Buildings

Low Intensity Light / Double LED Aviation Obstruction Light for Buildings

Place of Origin Guangdong, China
Brand Name Annhung
Model Number AH-LI/D
Product Details
Certification:
CE, RoHS, UL
Weight:
2kg
Color:
Red
Overall Size:
258 By 136 By 320
Light Intensity:
≥ 32.5cd(Option 10cd,50cd,80cd,100cd)
International Standard:
ICAO Annex 14, FAA L810
Products Name:
Double Aviation Obstruction Light
Working Mode:
Flashing( 20times/minute As Standard) Or Steady Adjustable
High Light:

airplane signal lights

,

waterproof outdoor lights

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
paper carton 1 piece/box
Delivery Time
Shipped in 15 days after payment
Payment Terms
T/T, Western Union, Money Gram
Supply Ability
1000Pieces/Month
Product Description



Low Intensity Light / Double LED Aviation Obstruction Light For Buildings





Advantage:



1.PC material keep from strong impact, thermal stability, high transmittance.
2.Bird spike against bird standing.
3.International-advanced cold LED with low power consumption, high brightness and service life of            light source reaching 100000hours.
4.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5.About 96% less power than 116W incandescent light.
6.Major Maintenance Cost Saving, Surge protection device inside light.
7.Strong anticorrosion , seismic resistance protection and UV protection.
8.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the  day.
9.Free maintenance and 3/4 inch or 1inch installation size being suitable for flag-pole or tower installation  way.
10.There is one switch converting between Flasing mode and Steadyburning mode.
11.Five Years Warranty Period.



Detail Description:



This product is the double light with Photocell. It can work at night and close during the day automatically by photocell. There are two lights. Main-standby way. One works, the other is for standby. When main light is broken, standby light can work automatically.



Application:



This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a
steady or flashing red safety light.



Specifications:



SPECIFICATIONS AH-LI/D Low-intensity Double Aviation Obstruction Light
Light Characteristics
Light Source LED
Available Colors Red
Intensity(cd) ≥32.5(option 10cd, 50cd, 80cd,100cd)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥10
Reflector Type Fresnel Lens
Flash Characteristics Flashing( 20times/minute as standard) or Steady adjustable
Operation Mode Dusk-to-dawn Automatically as standard. 24hours operation as option.
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage AC220V (option voltage, eg. AC120V, AC110V, DC48V)
Power(W) 4
Circuit Protection Integrated
Temperature Range(℃) -40~70
Physical Characteristics
Body Material Polycarbonate
Base Material Die-casting aluminum
Mounting 3/4inches or 1 inches
Height(mm) 258
Width(mm) 136
Depth(mm) 320
Mass(kg) 2
Product Life Expectancy 5 years plus
Environmental Factors
Humidity 10%-95%
Wind Speed 80m/s
Waterproof IP65
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth0 edition July 2004, table 6.3
FAA L-810 Steady-burning Red Aviation Obstruction Light





Dimension Drawing



Low Intensity Light / Double LED Aviation Obstruction Light for Buildings 0

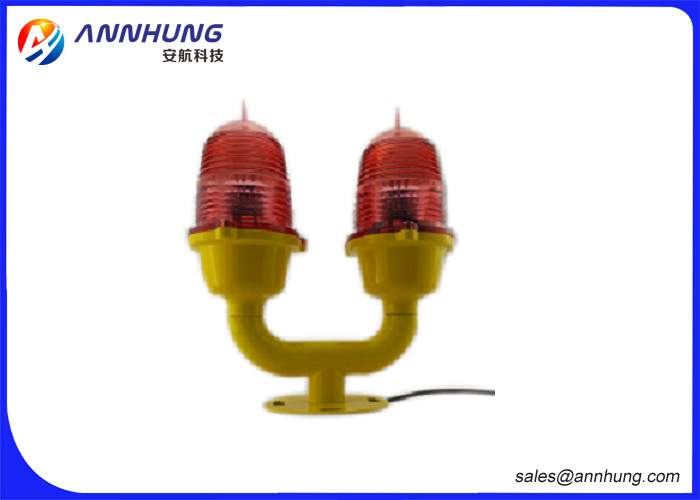

Product Picture





Low Intensity Light / Double LED Aviation Obstruction Light for Buildings 1



Low Intensity Light / Double LED Aviation Obstruction Light for Buildings 2
