60W Double Aeronautical Obstruction Light For Large Engineer Machinery
Product Details
| Type: | LED Aviation Obstruction Lights | IWorking Voltage(V): | AC220V (option Voltage,eg.AC120V,AC110,DC48V) |
|---|---|---|---|
| Working Mode: | Flashing Mode (20 To 60 Times/minute) | Water Proof: | IP67 |
| Base: | Die Casting Aluminum | Led Emitting Color: | Aviation Red |
| Temperature Range: | -40℃~+60℃ | Power Consumption: | 60W |
| Highlight |
tower obstruction lighting,led aircraft warning lights |
||
Product Description
60W Double Aeronautical Obstruction Light For Large Engineer Machinery
Product Application Area
High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),
Packaging & Delivery time
Packaging: Plastic bag with paper carton.
Delivery: In 5-15 days after payment.
After-sales service
1. 2 years full quality warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Working way of two lights | Main (Duty)-standby way or Two light working at the same time. |
| Vertical angle | 3° |
| Light source | LED |
| Horizontal angle | 360° |
| color | Aviation red |
| Working mode | Flashing mode (20 to 60 times/minute) |
| Supply voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| LED lifetime | ≥100,000h |
| Power | 60W |
| Light Intensity | 2,000cd ±25% |
| Working temperature | -40℃~+60℃ |
| Protection standard | IP65 |
| Mass | 7.0kg |
| Material | Base:Die casting aluminum, housing: High borosilicate glass |
Dimension Drawing

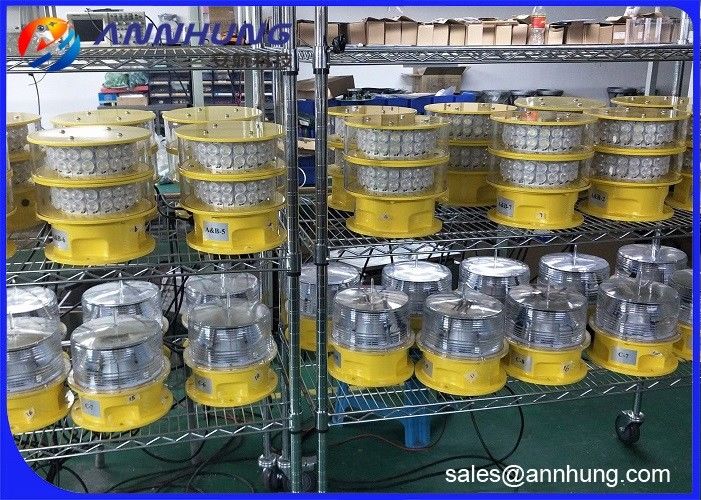

Product Picture
Product Highlights
60W Double Aeronautical Obstruction Light For Large Engineer Machinery Product Application Area High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), Packaging & ...
