High Chimney Double Aviation Waring Light Flashing Red Main - Standby Way
Product Details
| Weight: | 2kg | Color: | Red |
|---|---|---|---|
| Overall Size: | 258 By 136 By 320 | Light Intensity: | ≥ 32.5cd(Option 10cd,50cd,80cd,100cd) |
| International Standard: | ICAO Annex 14, FAA L810 | Products Name: | Double Aviation Obstruction Light |
| Certification: | CE, RoHS, UL | Working Mode: | Flashing( 20times/minute As Standard) Or Steady Adjustable |
| Highlight |
low intensity light,high intensity light |
||
Product Description
High Chimney Double Aviation Waring Light Flashing Red Main - Standby Way
Advantage:
1.PC material keep from strong impact, thermal stability, high transmittance.
2.Major Maintenance Cost Saving, overload protection device inside light.
3.Strong anticorrosion , anti seismic protection and UV protection.
4.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
5.Free maintenance and 3/4 inch or 1inch installation size being suitable for flag-pole or tower installation way.
6.There is one switch converting between Flasing mode and Steadyburning mode.
7.Five Years Warranty Period.
Detail Description:
This product is the double light with Photocell. It can work at night and close during the day automatically by photocell. There are two lights. Main-standby way. One works, the other is for standby. When main light is broken, standby light can work automatically.
Application:
This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a
steady or flashing red safety light.
Specifications:
| SPECIFICATIONS | AH-LI/D Low-intensity Double Aviation Obstruction Light |
| Light Characteristics | |
| Light Sourc | LED |
| Available Colors | Red |
| Intensity(cd) | ≥32.5(option 10cd, 50cd, 80cd,100cd) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | Flashing( 20times/minute as standard) or Steady adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. 24hours operation as option. |
|
LED Lifetime Experience(hours) |
>100,000 |
| Electrical Characteristics | |
| Operating Voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| Power(W) | 4 |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -40~70 |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | 3/4inches or 1 inches |
| Height(mm) | 258 |
| Width(mm) | 136 |
| Depth(mm) | 320 |
| Mass(kg) | 2 |
| Product Life Expectancy | 5 years plus |
| Environmental Factors | |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth0 edition July 2004, table 6.3 |
| FAA | L-810 Steady-burning Red Aviation Obstruction Light |
Dimension Drawing

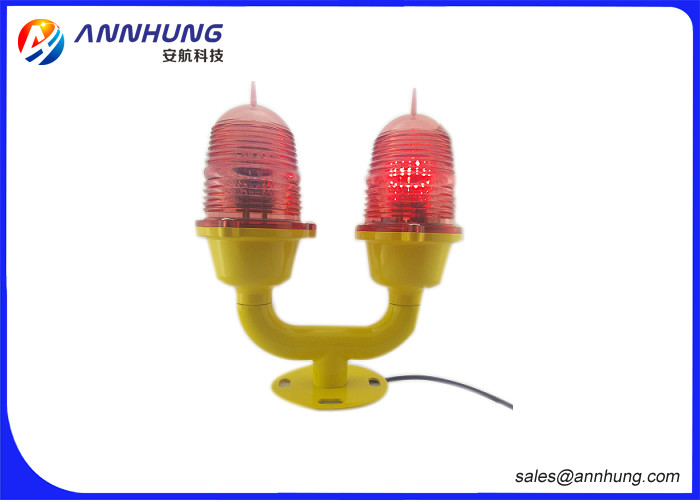

Product Picture
