Heat Resistant Medium Intensity Obstruction Light / Tower Warning Lights FAA L864
Product Details
| Name: | LED Aviation Obstruction Lights | Light Intensity: | 2000cd |
|---|---|---|---|
| Working Mode: | Flashing 20-60 Times/minute | Water Proof: | IP67 |
| Base: | Die Casting Aluminum | Emitting Color: | Aviation Red |
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description
Heat Resistant Medium Intensity Obstruction Light / Tower Warning Lights
Key features
1. Lamp shade of the light adopts PC which is quite high impact resistance, hot resistance, high efficiency light transmission up to 90%, anti-UV, aging resistance, ignitability rate UL-94V0.
2. House of the light is made of die casting aluminum and painted by spraying plastics finish. It is light, good ability of heat release, waterproof, impact resistance, anticorrosion etc..
3. Light source adopts LED which is with long lifespan up to 100,000hrs, lower power consumption and high efficiency.
4. The circuit of the light has load protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.
Product Application area
High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO (Aerodromes Annex 14) Medium-intensity Type B and FAA L-864 |
| Vertical beam | 3° |
| Light source | LED |
| Horizontal beam | 360° |
| Emitting color | Aviation red |
| Working mode | Flashing mode(20-60times/minute, ICAO standard; 20 to 40times/minute, FAA standard) |
| Operating voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| LED lifetime | ≥100,000h |
| Power rating | 20W |
| Intensity | 2,000cd ±25% |
| Working temperature | -40℃~+60℃ |
| Protection standard | IP65 |
| Net Weight | 3.0kg |
| Light Material | Base:Die casting aluminum, housing: PC |
Dimension Drawing

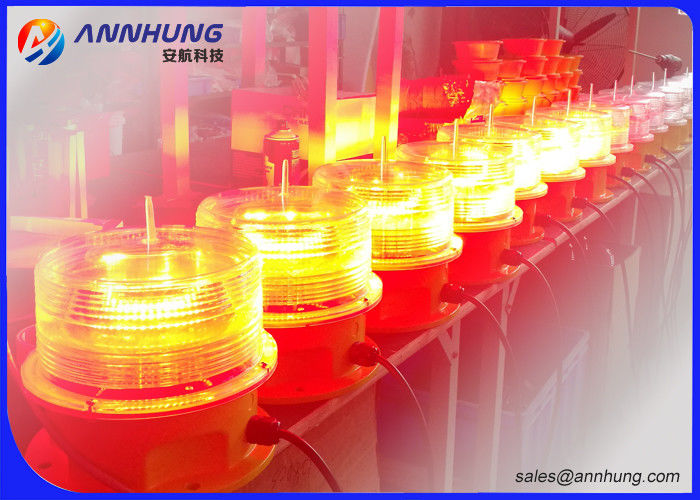

Product Picture
