Red and White Helipad Landing Lights Wind Cone 1.5 Meters Strong Corrosion Resistance
Product Details
| Type: | Helipad Landing Lights | Operating Voltage: | AC220V, 50/60 Hz(Option Voltage,eg.AC120V,DC48V) |
|---|---|---|---|
| Light Source: | LED | Height Of Wind Cone: | 1.5meters,2.5meters,etc |
| Color Of Wind Sock: | Red And White Or Orange And White Or Orange | Max Wind Load: | 260km/h |
| Highlight |
portfolio landscape lighting,perimeter lighting products |
||
Product Description

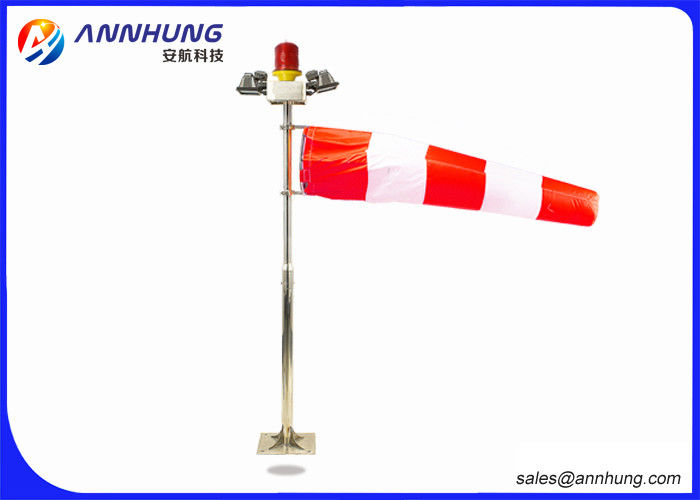

Red and White Helipad Landing Lights Wind Cone 1.5 Meters Strong Corrosion Resistance
Product Application
Used in airport and helipad fields for indicating final approach and taking off wind direction
Character
1.Wind sock is made of anticorrosion and high temperature resistance PVC material.
2.-1Pc LED aviation obstruction light on top and 2Pcs 6W LED flood light for illumination. (Height of Wind Cone is less than 4 meters)
-1Pc LED aviation obstruction light on top and 4Pcs 6W LED flood light for illumination.(Height of Wind Cone is equal to or more than 4 meters)
3.Pole is made of light, strong corrosion resistance SUS 304 Stainless steel.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO Annex 14 and FAA |
| Height of wind cone | 1.5meters,2.5meters,3.5meters,4meters,5meters,6meters,7meters,etc. |
| Supply voltage | AC220V,50/60 Hz(Option voltage,eg.AC120V,DC48V) |
| Three kind of wind sock | - 1.2 meters length, big diameter is 300mm,small one is 150mm (Height of Wind Cone is less than 4 meters) - 2.4 meters length, big diameter is 600mm,small one is 300mm.(Height of Wind Cone is between 4meters and 6meters) - 3.6 meters length, big diameter is 900mm, small one is 450mm.(Height of Wind Cone is more than 6meters) |
| Color of wind sock | Red and white or orange and white or orange |
| Max wind load | 260km/h |
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-30 days after payment.
