Cold Led Runway Lights With High Brightness Quake - Proof Protection
Product Details
| Light Intensity: | ≥10cd | Working Mode: | Steady-burning Mode Or Flash Mode |
|---|---|---|---|
| Light Source: | LED | Net Weight: | 1 Kg |
| Emitting Color: | Red, Green, White, Yellow/ White, Yellow/ White, Yellow/ White, Red/ White( Customized) | Protection Standard: | IP68 |
| Highlight |
airport led lighting,solar runway lights |
||
Product Description
Cold Led Runway Lights With High Brightness Quake - Proof Protection
Advantage
1.International advanced solar panel reaching more than 10 years service life.
2. Easy installation and relocation: no specialized work crew required, limited air traffic disruption, and lights are immediately operational .
3. Comprehensive protection in voltage short circuit, over-voltage, floating charge and over temperature.
4. Built-in Solar Panel.
5. Self-contained and low maintenance: all components are incorporated within a compact, stand-alone unit.
6. Strong anticorrosion , Rain and Snow, quake-proof protection and UV protection.
7. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
8. Clean, renewable, green and reliable energy source.
9. Dusk-to-dawn operation: Built-in photocell inside light can let lightwork at night and close during the day automatically.
10. More than 5 days autonomy.
11. Recyclable batteries with the lightest environmental.
Main Parameter
| 1.Mode: | AH-SA/ B |
| 2.Light intensity: | ≥10cd |
| 3.Working mode: | Steady-burning mode or Flash mode |
| 4.Light source: | LED,100,000hours service life |
| 5.Solar panel: | DC3.7V,monocrystalline silicon |
| 6. Material: | -Housing: Polycarbonate -Base: die casting aluminum |
| 7.Autonomy(without sunlight): | at least 5 days(Option 20days) |
| 8.Battery: | Lithium ion battery, replaceable |
| 9.Overall Size(mm): | 162 by 162 by 160 |
| 10.Installation Size(mm): | 140 by140 by M6 |
| 11.Weight: | 1Kg |
| 12.Emitting Color: | Red, green, white, yellow/ white, yellow/ white, yellow/ white, red/ white( Customized) |
| 13.Ambient Temperature: | -40℃~+60℃ |
| 14.Wind load: | 80m/s |
| 15. Protection Standard: | IP68 |
| 16. Optional: | charging port |
Function
1.Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
2. Optional Battery Charge port: 100~240VAC
3. Optional NVG-compatible infrared (IR) LEDs
Application
Emergency operations, Helipads, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting, Threshold lighting and obstruction lighting.
Dimension Drawing

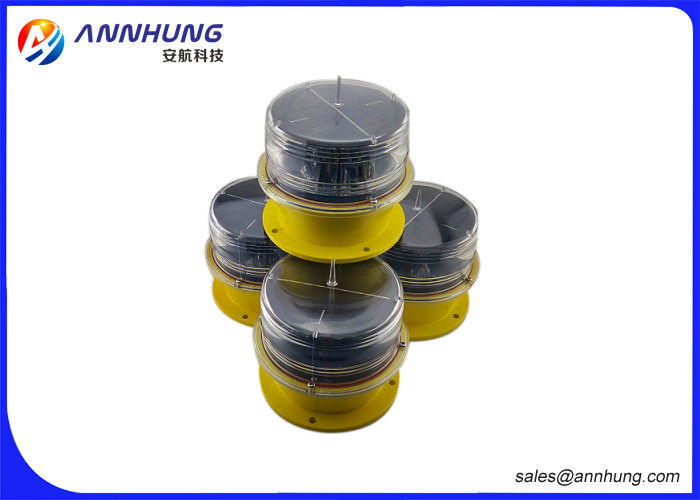

Product Picture
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
