Flash Mode Solar Airport Lighting For Final Approach / Take - Off Area
Application area
Helipads, Portable or expedited airfield lighting, Touchdown and Lift- off area ( TLOF), Emergency operations , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Threshold lighting and obstruction lighting.
Advantage
1. Easy to install and relocation: no specialized work crew required, limited air traffic disruption, and lights are immediately operational .
2. Comprehensive protection in voltage short circuit, over-voltage, floating charge and temperature.
3. Built-in Solar Panel.
4. Self-contained and low maintenance: all components are incorporated within a compact, stand-alone unit.
5. Strong anticorrosion Rain and Snow, antiseismic protection and UV protection.
6. Clean, renewable, green and reliable energy source.
7. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
8. More than 5 days autonomy.
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Function
1.Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
2. Optional Battery Charge port: 100~240VAC
3. Optional NVG-compatible infrared (IR) LEDs
Product Descripton
| Description |
Parameter |
| Light source |
LED |
| Working mode |
Steady-burning mode or Flash mode |
| Battery |
Lithium ion battery, replaceable |
| Available color |
Red, green, white, yellow/ white, yellow/ white, yellow/ white, red/ white( Customized) |
| LED lifetime |
≥100,000h |
| Intensity |
≥10cd |
| Working temperature |
-40C ~ +60C |
| Standard |
ICAO Annex 14, Vol. 2 |
| Protection standard |
IP68 |
| Mass |
1.0kg |
| Material |
Base:Die casting aluminum, housing: PC |
Dimension Drawing

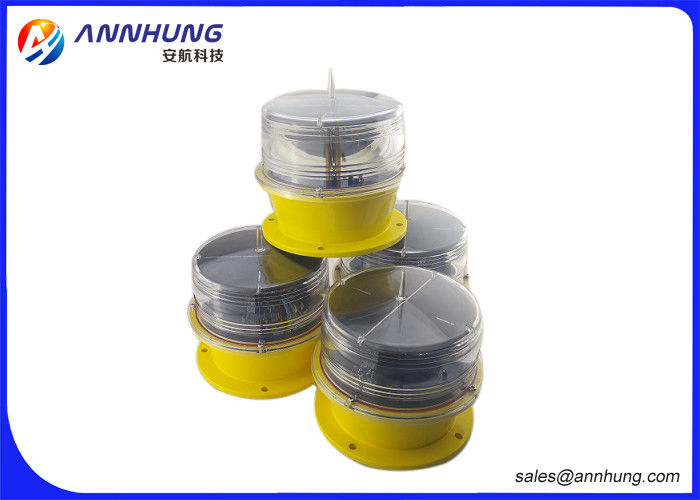

Product Picture
