Solar Airport Lighting Solar Powered LED Portable Airfield Touchdown and Lift-off area Light

Minimum Order Quantity :	1 pc	Price :	Negotiable
Packaging Details :	paper carton 1 piece/box	Delivery Time :	shipped in 15 days after payment
Payment Terms :	T/T, Western Union, MoneyGram	Supply Ability :	1000 pcs per month

Place of Origin:	Guangdong, China	Brand Name:	Anhang
Certification:	ICAO	Model Number:	AH-SA-A

Detail Information
Light Intensity:	≥32cd	Working Mode:	Steady-burning Mode Or Flash Mode
Light Source:	LED	Color:	Red, Green,White, Red/Green
Protection Standard:	IP68	Solar Panel:	Monocrystalline Silicon
High Light:	airport led lighting , led airfield lighting

Product Description

Solar Airport Lighting Solar Powered LED Portable Airfield Touchdown and Lift-off area Light

Advantage

1. Easy installation and relocation: no specialized work crew required,limited air traffic disruption, and lights are immediately operational
2. International advanced solar panel reaching more than 10 years service life.
3. Comprehensive protection in voltage short circuit, over-voltage, floating
Charge and temperature.
4. Self-contained and low maintenance: all components are incorporated within a compact, stand-alone unit.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Strong impact lamp shape with PC material.
7. Strong anticorrosion and UV protection.
8. At least 7 days autonomy.(optional 15days)
9. Having lightning-protection function.

10. Dusk-to-dawn: Light can work at night automatically by solar panel which function is equal to photocell sensor and close during day time.

Function

1.Optional wireless ON/OFF control provides on-demand operation from
up to 3km away. Antenna is outside light base.
2.Push button interface for local ON/OFF control. Toggle switch
interface for steady-burning/flashing working mode.
3.Optional Battery Charge port: 100~240VAC
4. Optional NVG-compatible infrared (IR) LEDs

Application

Emergency operations, Helipads, Touchdown and Lift-off area (TLOF), Final Approach and Take-off area (FATO), Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting,
Threshold lighting and obstruction lighting.

1.Mode:	AH-SA/ A
2.Light intensity:	≥32cd
3.Working mode:	Steady-burning mode or Flash mode
4.Light source:	LED
5.Service life of LED:	100,000hours
6.Solar panel:	Monocrystalline silicon
7.Battery:	VRLA, 12V/ 16AH, replaceable
8. Material:	-Housing: Polycarbonate -Base: die casting aluminum
9.Autonomy(withoutsunlight):	at least 7 days(Option15days)
10.Overall Size(mm):	260 × 260× 340
11.Installation Size(mm):	220 × 220× M10
12. Weight:	6Kg
13.Emitting Color:	Red, Green,White, Red/Green, Yellow/White
14.Ambient Temperature:	-40℃~+60℃
15.Wind load:	80m/s
16. Protection Standard:	IP68
17. Optional:	remote control, charging port, NVGcompatible infrared (IR) LEDs

Compliance

ICAO TLOF( Annex14, Vol. 2, Appendix1)
ICAO FATO (Annex 14, Vol. 2, Appendix 1)
FAA L-861T(AC No. 150/5345-46D, Eb67)
FAA L-860HR (EB 87D, EB67D)

Dimension Drawing

Solar Airport Lighting Solar Powered LED Portable Airfield Touchdown and Lift-off area Light 0

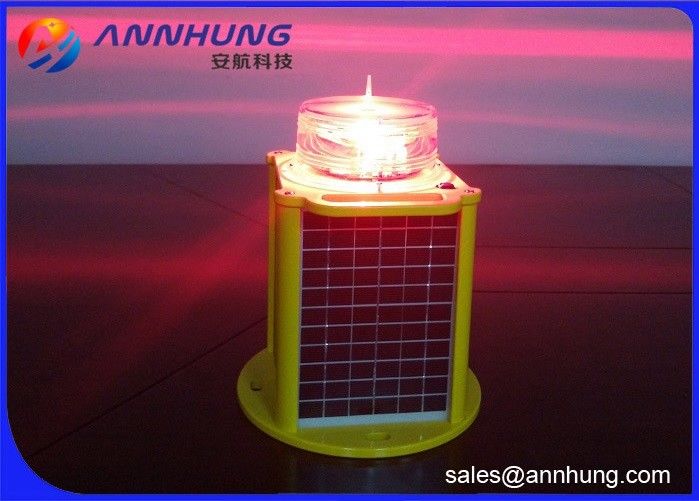

Product Picture

Solar Airport Lighting Solar Powered LED Portable Airfield Touchdown and Lift-off area Light 1

Solar Airport Lighting Solar Powered LED Portable Airfield Touchdown and Lift-off area Light 2
