LED Airport Lighting With PC Material
Product Details
| Type: | Solar Airport Lighting | Battery: | VRLA, 12V/ 16AH, Replaceable |
|---|---|---|---|
| IP Rating: | IP68 | Lamp Body Material: | Die Casting Aluminum |
| Emitting Color: | Red, Green,White, Red/Green,Yellow/White | Working Mode:: | Steady-burning Mode Or Flash Mode |
| Highlight |
led airfield lighting,solar runway lights |
||
Product Description

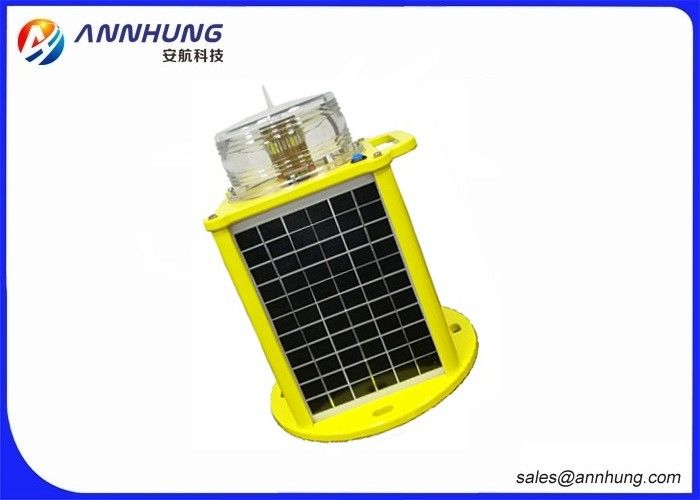

AH-SA/A DC12V 16Ah LED Red White Solar Airport Lighting for Touchdown and Lift-off Area
Advantages
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3. International advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4. Strong impact lamp shape with PC material.
5. At least 7 days autonomy.(optional 15days)
6. Having lightning-protection function.
Application
Emergency operations, Helipads, Touchdown and Lift-off area (TLOF), Final Approach and Take-off area (FATO), Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting,
Threshold lighting and obstruction lighting.
Function
1. Optional wireless ON/OFF control provides on-demand operation from up to 3km away. Antenna is outside light base.
2. Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
3. Optional Battery Charge port: 100~240VAC
4. Optional NVG-compatible infrared (IR) LEDs
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO TLOF( Annex14, Vol. 2, Appendix1) |
| Light source | LED |
| LED color | Red, Green,White, Red/Green,Yellow/White |
| Working mode | Steady-burning mode or Flash mode |
| Battery | VRLA, 12V/ 16AH, replaceable |
| LED life | ≥100,000h |
| Intensity | ≥32cd |
| Operating temperature | -40C ~ +60C |
| IP Protection | IP68 |
| Weight | 6.0kg |
| Material | Base:die casting aluminum, housing: PC |
