Red Aviation Led Lights Built-In Photocell For Day / Night Operation
Product Details
| Working Mode: | Flashing Mode(20-60times/minute) | IP Rating: | IP65 |
|---|---|---|---|
| Base: | Die Casting Aluminum | Emitting Color: | Aviation Red |
| Ambient Temperature: | -40℃~+60℃ | Power Consumption: | 20W |
| Highlight |
high intensity light,aviation obstruction light |
||
Product Description
Red Aviation Led Lights Built-In Photocell For Day / Night Operation
This Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance.
Product Application
- AH-MI/B medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
Compliance
- ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
- FAA L-864
Features
1. CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
2. RS485 communication part for monitoring
3. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
4. Power supply available in DC(12-48VDC) or AC(110-240VAC)
5. Built-in photocell for day/night operation(dusk to dawn operation)
Packaging & Delivery
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
Product Descripton
| Description | Parameter |
|---|---|
| Standard: | ICAO (Aerodromes Annex 14) Medium-intensity Type B and FAA L-864 |
| Vertical degree | 3° |
| Light source | LED |
| Horizontal degree | 360° |
| LED life | ≥100,000h |
| Power consumption | 20W |
| Intensity | 2,000cd ±25% |
| Operating temperature | -40℃~+60℃ |
| IP Protection | IP65 |
Dimension Drawing

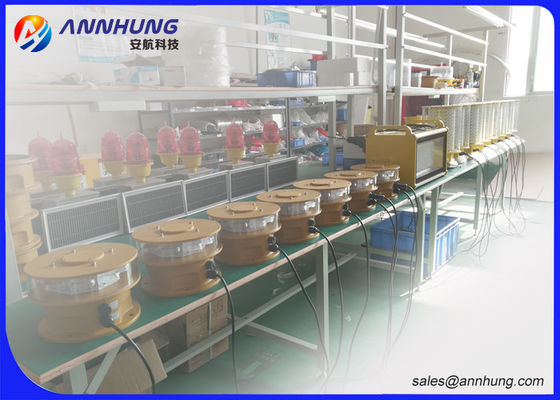

Product Picture
