DC3.7V Aviation Warning Lights Low Intensity LED With ICAO Standard
Product Details
| Type: | LED Aviation Obstruction Lights | Input Voltage(V): | DC3.7V(Solar Powered Way),recyclable Batteries With The Lightest Environmental And Long Life. |
|---|---|---|---|
| IP Rating: | IP65 | Lamp Body Material: | Die Casting Aluminum |
| Emitting Color: | Red | Working Mode:: | Steady-burning Mode Or Flash Mode(20-60times/minute) |
| Highlight |
DC3.7V Aviation Warning Lights,ICAO Aviation Warning Lights,DC3.7V Low Intensity LED Lights |
||
Product Description
DC3.7V Aviation Warning Lights Low Intensity LED With ICAO Standard
DC3.7V Aviation Warning Lights / LED Low Intensity Light with ICAO Standard
Features
1. With bird needle to prevent bird drop
2. LED as light source, life experience >100,000hours
3. UV & vibrations protectd polycarbonate lens for converging light
4. ON/OFF button make local control easy
5. Powder coated die casting aluminum base, light fastness, resist snow and rain
6. RS485 communication part for monitoring
7. GSM cellphone monitoring
8. Built-in monocrystalline silicon solar panel, conversion efficiency is betther than polycrystalline silicon
Application
- AH-LS/B solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
- Used alone on the top of obstacle which height is less than 45meter
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810 |
| Light source | LED |
| LED emitting color | aviation red |
| Working mode | Steady-burning mode or Flash mode(20-60times/minute) |
| working voltage | DC3.7V(Solar powered Way),recyclable batteries with the lightest environmental and long life |
| Protection standard | IP65 |
| Net Weight | 2.0kg |
| Material | Base:Die casting aluminum, housing: PC |
Dimension Drawing

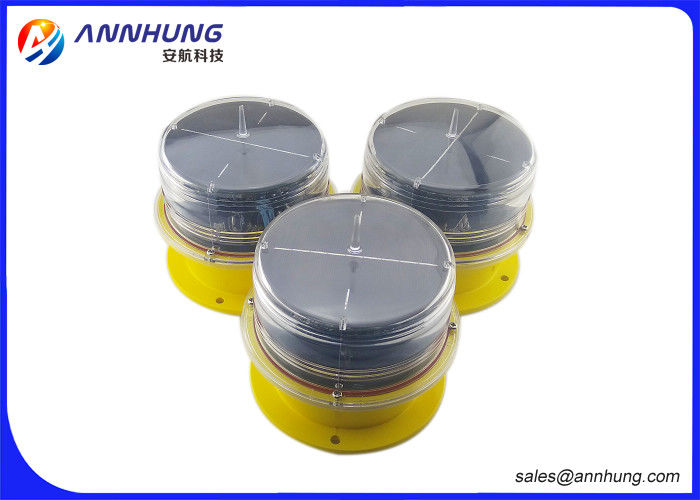

Product Picture
