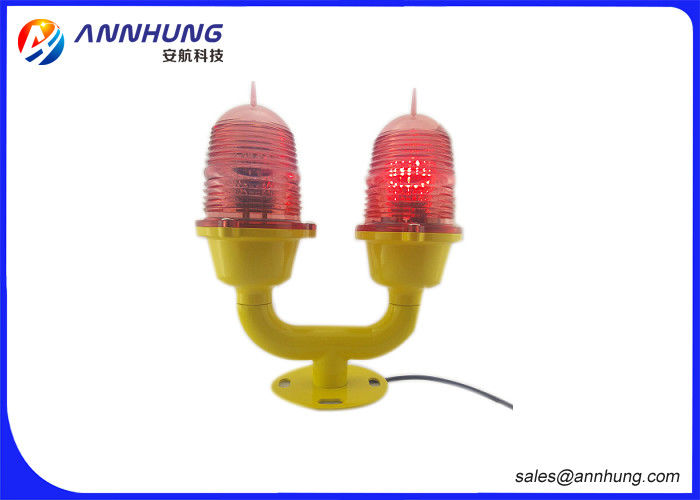

Red LED Double Aviation Warning Lights Steady Or Flash Working Mode
Product Details
| Type: | LED Aviation Obstruction Lights | Input Voltage(V): | AC220V (option Voltage,eg.AC120V,AC110,DC48V) |
|---|---|---|---|
| Working Mode: | Steady-burning Mode Or Flashing Mode(20-60times/minute) | IP Rating: | IP65 |
| Base: | Die Casting Aluminum | Emitting Color: | Aviation Red |
| Ambient Temperature: | -40℃~+70℃ | Power Consumption: | 4W |
| Highlight |
low intensity light,high intensity light |
||
Product Description
Red LED Double Aviation Warning Lights Steady Or Flash Working Mode
Application
Obstruction light used in Tower Crane, Wind Turbine, High Mast, Metallurgies, Towers(Telecom, GSM, Electric), Smokestacks, High-rise Buildings and any other potentially hazardous obstructions within 45 meter to air traffic with a steady burning red safety light.
Advantages
1.PC material with good impact protection strength, thermal stability, high transmittance.
2.Bird spike against bird drop.
3.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5.About 96% less power than 116W incandescent light.
6.Major Maintenance Cost Saving. Surge protection device inside light.
7.Strong anticorrosion, quake-proof protection and UV protection.
8.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9.Free maintenance and 3/4 inch or 1inch installation size being suitable for flag-pole or tower installation way.
10.There is one switch converting between Flashing mode and Steady-burning mode.
11.Five Years Warranty Period.
Product Descripton
| Description | Parameter |
|---|---|
| Working way of two lights | -Two light flashing by Main(duty)-standby way, Two lights flashing at the same time or two lights flashing 1.5 second interval(Flashing mode, three ways) -Two light working by Main(duty)-standby way, Two lights working at the same time.(Steady-burning mode, two ways) |
| Working mode | Steady-burning mode or Flashing mode(20-60times/minute) |
| Supply voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| LED life | ≥100,000h |
| Power consumption | 4W |
| Intensity | ≥32.5cd(Option 10cd,50cd,80cd,100cd) |
| Net Weight | 27.0kg |
| Material | Base:Die casting aluminum, housing: PC |
Dimension Drawing
Product Application
Packaging & Delivery
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
