Solar Powered Aviation Lights
>
|
| Place of Origin | Shenzhen, China |
| Brand Name | Annhung |
| Certification | CE |
| Model Number | AH-LS/DE |

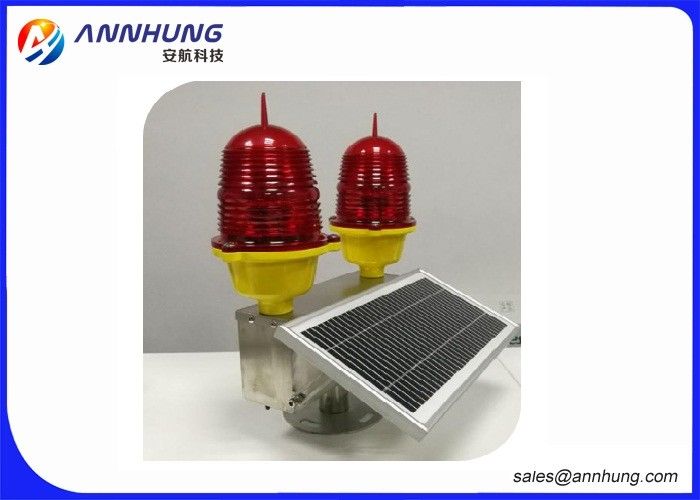

UV Protection Solar Powered Aircraft Warning Lights For Tower Crane
This LED Low-intensity Double Solar Aviation Obstruction light is adopting high efficient mono crystalline silicon solar panel, cooperate with solar dedicated lithium ion battery as power supply.
There are two lamps on the battery box, one is main lamp, another is standby. When main lamp fail, standby light turn on automatically.
3/4inch thread hole under base is very suitable for pole mounting.
Datasheet: AH-LS-DE Low-intensity L810 Double Aviation Obstru...
Compliance
l ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
l FAA L-810
Features
Electrical
l LED as light source, life experience >100,000hours
Physical
l With bird needle to prevent bird drop
l UV & vibrations protected polycarbonate lens for converging light
l Stainless steel 304 base, light fastness, resist snow and rain
l Mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
l Solar panel angel is adjustable (Vertical 15-90°)
Product Descripton
| SPECIFICATIONS | AH-LS/DE Low-intensity L810 Double Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Emitting Color | Red |
| Intensity(cd) | 32.5cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady/Flashing(20fpm) adjustable |
| Operation Mode | Main-standby, Dusk-to-Dawn operation |
| LED Life Experience(hours) | >100,000 |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 6 |
| Charging Regulation | Microprocessor controlled |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Installation Size | 98×98×θ12 & 3/4inch thread |
| Overall Size (mm) | 260×300×400 |
| Weight(kg) | 4 |
| Product Life Expectancy | Average 5 years |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 | |
| Low-intensity Type A/B/E Obstacle Light | |
| FAA | L-810 |
| Optional | |
| Wireless remote control | |
|
External battery charger
|
|
|
NVG - compatible infrared (IR) LED
|
Packaging & Delivery time
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Dimension Drawing
Product Picture
