Low - Intensity Solar Aviation Obstruction Light
Product Details
| Emitting Color: | Red | Light Intensity: | ≥ 10cd(Steady-burning); ≥ 32.5cd(Flashing Mode) |
|---|---|---|---|
| Light Source: | LED | Certification: | CE, RoHS, UL |
| Weight: | 3kg | Power Consumption: | 3w |
| Highlight |
solar tower light,solar powered led flashing lights |
||
Product Description

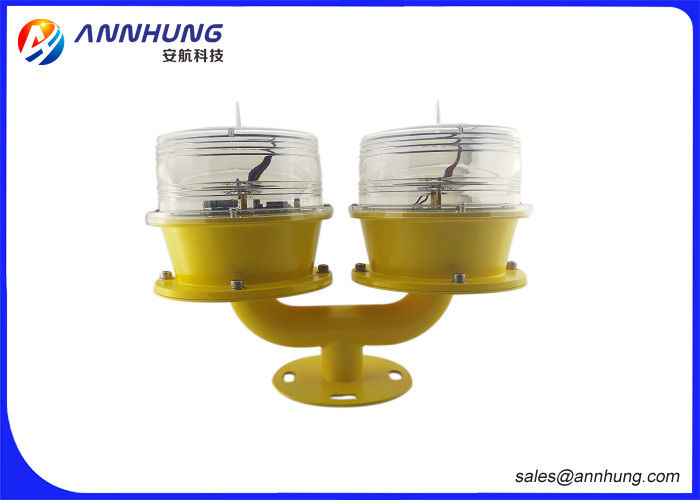

AH-LS/T Low-intensity Double Solar Aviation Obstruction Light
Application area
AH-LS/T Low-intensity Double Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Product Description
Key Parameter
| Description | Parameter |
| Mode | AH-LS/T |
| Light intensity | ≥ 10cd(Steady-burning); ≥32.5cd(Flashing mode) |
| Working mode | Steady-burning mode or Flashing mode(20-60times/minute) |
| Light source | LED,100,000hours service life |
| Working way of two lights |
Two light flashing by Main-standby way, two lights flashing at the same or two lights flashing 1.5 second interval. (Flash mode, three ways) Two light working by Main-standby way, two lights working at the same time. (Steady-burning way, two ways) |
| Operating voltage |
DC 6.4V (Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| Material | |
| Housing | PC |
| Base | SUS304 stainless steel |
| Autonomy(without sunlight) | at least 5 days(Option 15days) |
| Power Consumption | 3W |
| Overall Size(mm) | 330 by 158 by 340 |
| Installation Size(mm) | 3/4inch or 100 by 100 by 12 |
| Weight | 3Kg |
| Emitting Color | Red |
| Ambient Temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protection Standard | IP65 |
Function
AH-LS/L Low-intensity Single Solar-Powered Aviation Light has one photocell. It can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.
Advantages
1. 3/4 inch installation way especially for tower or flag-pole installation way.
2. At least 5 days autonomy.(optional 15days)
3. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
4. Major Maintenance Cost Saving, Surge protection device inside light.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
7. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
8. International advanced solar panel reaching at least 10 years service life.
9. Bird spike against bird drop.
10. PC material with good impact protection strength, thermal stability, high transmittance.
Comply with
Low-intensity Type A or Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
