IALA Solar LED Marine Lantern with Rain And Anti Seismic Protection
Solar powered marine navigation lantern,
solar marine lantern,
self contained marine lantern, IALA.
Datasheet: AH-LS-C-6-1 Solar Marine Lantern.pdf
Application
AH-LS/C navigation light applying to ocean buoy, river buoy, aquaculture, offshore oil platform, port or other fixing and floating aids to naviation.
Pruduct Description
Advantages
1.Visual distanve Up to 6 Nautical Miles (Tc =0.74)
2.Based on LED technology and its color comply to IALA Recommendations E-200-1.
3.Bird spike against bird standing.
4.Comprehensive protection in short circuit voltage,overload-voltage,floating charge and temperature.
5.International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6.Strong anticorrosion ,Rain and anti seismic protection and UV protection.
7.Clean, renewable, green and reliable energy source.
8.Dusk-to-dawn operation: photocell. Light can work at night automatically by photocell.
9.More than 5 days autonomy without sunshine (Option 20days).
10.Recyclable batteries with the lightest environmental.
11.IP68 protection standard, Full sealing structure.
Main Parameter
Description | Parameter |
Mode | AH-LS/C-6 |
Standard | IALA |
Visible range | Up to 6 Nautical Miles |
Working mode | Flashing mode or Steady-burning mode |
Light source | LED |
Light intensity | 15cd (3NM), 35cd (4NM), 75cd (5NM),150cd (6NM) |
Vertical angle | >9° |
Horizontal angle | 360° |
Service life | 100, 000hours |
Working voltage | DC12V, recyclable batteries with the lightest environmental and long life |
Battery capacity | 12V |
Autonomy | At least 5days (Option 20days) |
Overall Size (mm) | 260 by 260by 440 |
Installation Size | 220 by 220by M10 |
Net Weight | 5.8Kg |
Available Color | Red, Green, Yellow (Amber), Blue or White |
Temperature range | -55℃~+60℃ |
Wind load | 80m/s |
Control Way | photocell. Light can work at night automatically by photocell. |
Optional | Adjustable 256 light characters |
Dimension Drawing

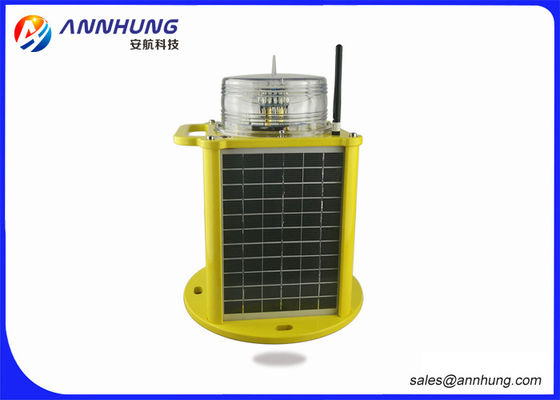

Product Picture
