AH-LS/S LED Red Low-intensity Solar-Powered Aviation Obstruction Light
  • AH-LS/S LED Red Low-intensity Solar-Powered Aviation Obstruction Light
  • AH-LS/S LED Red Low-intensity Solar-Powered Aviation Obstruction Light

AH-LS/S LED Red Low-intensity Solar-Powered Aviation Obstruction Light

Place of Origin Guangdong, China
Brand Name Ahhang
Certification ICAO
Model Number AH-LS/S
Product Details
Light Intensity:
≥32.5cd
Emitting Color:
Red
Light Source:
LED
Operating Voltage:
DC12V
Working Mode:
Steady-burning Mode Or Flash Mode(20-60times/minute)
Power Consumption:
6W
High Light:

solar tower light

,

solar powered led flashing lights

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
Negotiable
Packaging Details
paper carton 1 piece/box
Delivery Time
Shipped in 15 days after payment
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 pcs per month
Product Description



AH-LS/S LED Red Low-intensity Solar-Powered Aviation Obstruction Light





Aviation Obstruction Light
Aviation Light
Obstruction Light
compliant with ICAO,FAA,CAAC

Applications

AH-LS/S LED Red Low-intensity Solar-Powered Aviation Obstruction Light 0


Scope of Application



AH-LS/S Low-intensity Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High
Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.





Main Parameter



Description Parameter
Mode AH-LS/S
Light intensity ≥ 32.5cd
Working mode Steady-burning mode or Flash mode(20-60times/minute)
Light source LED,100,000hours service life
Supply voltage

DC12V(Solar powered Way),recyclable batteries with the

lightest environmental and long life.

Material
Housing Polycarbonate
Base SUS304 stainless steel
Autonomy(without sunlight) at least 7 days(Option 20days)
Power  6W
Overall Size(mm) 410 by 350 by 425
Installation Size(mm) 3/4inch
Net Weight 7Kg
Emitting Color Red
Ambient Temperature -40℃~+60℃
Wind load 80m/s
Protection Standard IP65





Function



AH-LS/S Low-intensity Single Solar-Powered Aviation Light has one photocell. Installed in the fuse, it can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.



Advantages



1. PC material keep from impacting protection , thermal stability, high transmittance.
2. Bird spike against bird nesting.
3. International advanced solar panel reaching more than 10 years service life.
4. Comprehensive protection in voltage short circuit, over-voltage, floating Charge and over temperature.
5. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
6. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
7. Major Maintenance Cost Saving, Surge protection device inside light.
8. Strong anticorrosion, seismic resistance protection and UV protection.
9. More than 7 days autonomy (optional 15days)
10. Movable Panel for being convenient for customer choosing angle.
11. 3/4 inches installation way especially for tower or flag-pole installation way.



Compliance



Low-intensity Type A or Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3



Dimension Drawing



AH-LS/S LED Red Low-intensity Solar-Powered Aviation Obstruction Light 1

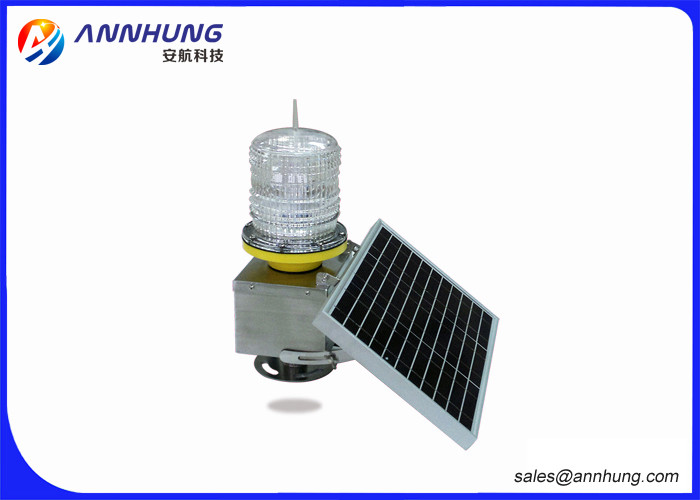

Product Picture



AH-LS/S LED Red Low-intensity Solar-Powered Aviation Obstruction Light 2
