Smokestacks Using Aircraft Obstruction Warning LED / Solar Powered Light
Smokestacks
Standard : ICAO,FAA,MH-T 6012-1999 Aviation Obstruction Light National Standards GB 50051-2002 -- Code for design of chimneys
Aims
To set the highest point and max. edge point of Industrial Smokestacks for marking it to air traffic.
Method
Due to its special features, the aviation obstruction light installed must be installed between 1.5m to 3m on the top of industrial smokestacks. When the smokestack is more than 150m, the aviation obstruction light can be installed lower than 7.5m of the top of smokestacks.
Product Application
-High-rise Building
-High Chimney
-Marking towers (Telecom, GSM, Microwave & TV)
-High Pole
-Tower Crane
-Wind Tubinebridge
-Large-scale port machinery
-Large engineer machinery and wind turbines.
After-sales service terms of aviation obstruction light
1.Two years full warranty, five years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Full warranty is not available if one of the below situations happens
1.Man-made damage and force majeure damage.
2.Installation is not in line with the instruction.
3.The used specification exceeds the normal specifications in the instruction.
4.Disassemble the production without our permission.
5.Damaged by the inappropriate storage (storage should be moisture proof, The products with battery should be charged periodically.
Packaging & Delivery
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
Product Descripton
| Description | Parameter |
|---|---|
| Horizontal angle | 360° |
| color | Red (Night); White (Daytime) |
| Working mode | Flashing mode(20times/minute(Night); 40times/minute(Daytime)) |
| Supply voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| LED lifetime | ≥100,000h |
| Power rating | 60W |
| Light Intensity | 2,000cd(Night) to 20,000cd(Daytime) |
| Operating temperature | -40℃~+60℃ |
| Water proof | IP65 |
| Material | Base:Die casting aluminum, housing: PC |
Dimension Drawing

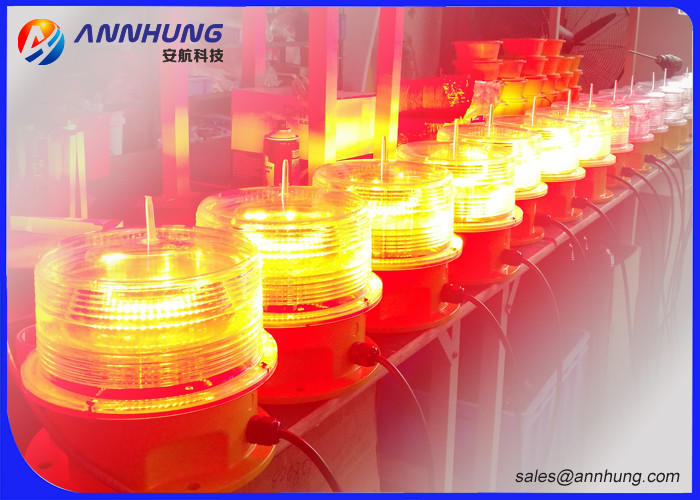

Product Picture
