Work Stability Helipad Landing Lights / Brightness Led Perimeter Lighting
Product Details
| Type: | Helipad Landing Lights | Operating Voltage: | AC220V, 50/60 Hz(Option Voltage,eg.AC120V,DC48V) |
|---|---|---|---|
| Light Source: | LED | Emitting Color: | Green Or Yellow |
| Working Mode:: | Steady-burning Way | Power Consumption: | 10W |
| Highlight |
helicopter landing lights,perimeter lighting products |
||
Product Description
Work Stability Helipad Landing Lights / Brightness Led Perimeter Lighting
Heliport Elevated Perimeter Light adopts LED Light resource technology, the service life is above 10years, lampshade adopts PC material injection moulding; This product is used for shining yellow or green light to indicate running way ‘s direction and location.
Datasheet: AH-HP-E Heliport Elevated Light.pdf
Product Application
Used in helicopter taking off and landing area at night or in the daytime with poor visibility.
Features
1.With work stability, strong anti-interference ability and shock resistance.
2.Full sealed structure base, with superior waterproof performance.
3.With storm surge protection device.
4.Special LED chips, with brightness, low energy consumption and long life.
5.Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.
6.Easy to fold design, can reduce the secondary damage to helicopters effectively.
7.Arc adjustable design in chassis mounting holes, easy to install.
8.PC material cover, provides corrosion resistance and UV protection.
Function
This product is used for shining yellow or green light to accurately indicate the threshold of taking off and landing area.
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO Annex 14 |
| Light source | LED |
| Service life | 100,000 hours |
| Light intensity | ≥25cd |
| Available color | Green or yellow |
| Working mode | Steady-burning way |
| Working voltage | AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V) |
| Power | 10W |
| Net Weight | 1.4kg |
Dimension Drawing

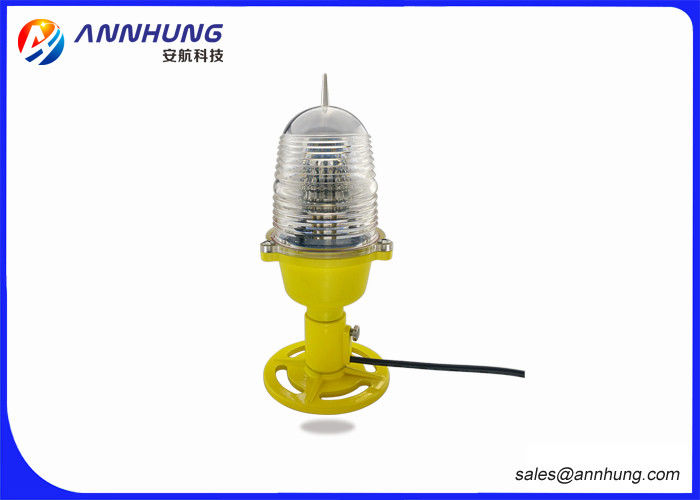

Product Picture
Product Highlights
