IALA 256 Flashes Marine Lantern with Bluetooth Remote Control
Product Application
AH-LS/P-2 LED Marine Navigation Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
Datasheet: AH-LS-P-2 LED Marine Navigation Lanterns.pdf
Product Application
Used on both fixed and floating structures for Aids to Navigation. This LED Marine Navigation Lanterns is completely sealed lantern.
There is two rotatory switch on PCB, user could change the light flashing characteristics(IALA 256 flashes) easily. GPS sync flashing is optional, it ensure all different flash light could flash at the same time.
Compliance
IALA E-200-1
Features
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Working voltage: 110-240vac, 12vdc, 48vdc
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
Built-in photocell for day/night operation(dusk to dawn operation)
Rotary switches for adjust 256 flash characteristics comply with IALA
User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation
External charger
Wireless remote control
Bluetooth remote control
Infrared remote control
GSM Monitoring
RS232 485 port
GPS sync flashing
Solar panel & battery
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
Description | Parameter |
---|---|
Standard | IALA |
Light source | LED |
LED Emitting color | Yellow,Green,White and Red |
Working mode | Flashing mode or Steady-burning mode |
Supply voltage | 110-240VAC, 12VDC, 48VDC or others |
LED life-span | ≥100,000h |
Light intensity | 1cd(1nm),5cd(2nm),15cd(3nm),38cd(4nm) |
Power rating | 1W |
Net Weight | 1.0Kg |
Light Character | option 256 light characters |
Dimension Drawing

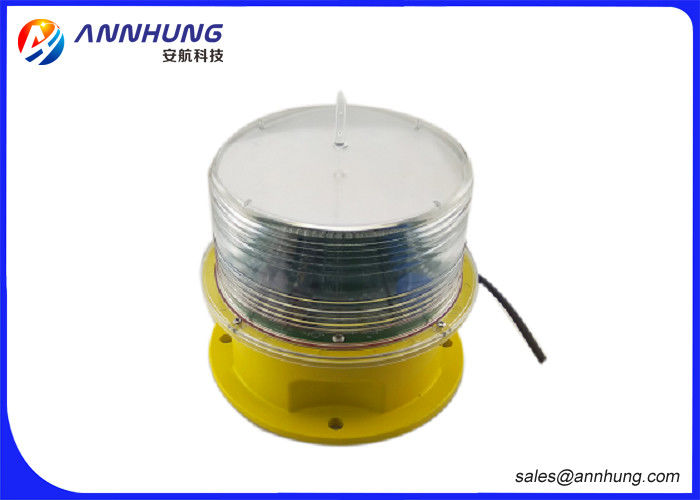

Product Picture
