LED Marine Lantern
>
|
| Place of Origin | Shenzhen, China |
| Brand Name | Annhung |
| Certification | CE |
| Model Number | AH-LS/P-2 |

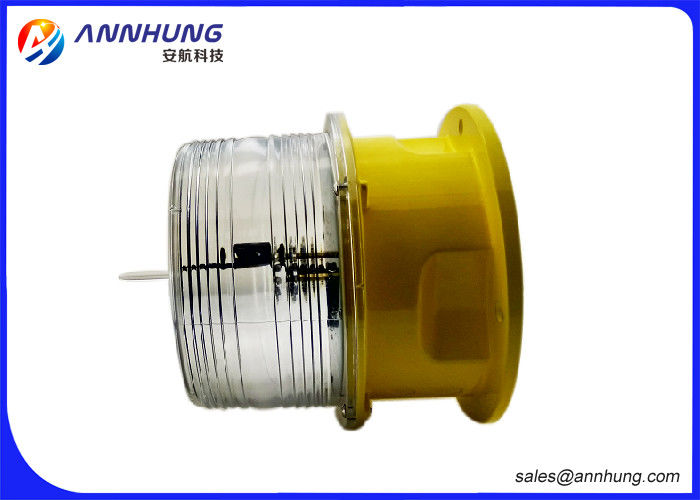

AH-LS/P-2 Solar Powered LED Marine Navigation Lihgt for Marking Signal
This LED Marine Navigation Lanterns is completely sealed lantern.
There is two rotatory switch on PCB, user could change the light flashing characteristics(IALA 256 flashes) easily.
GPS sync flashing is optional, it ensure all different flash light could flash at the same time.
AH-LS/P-2 LED Marine Navigation Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
Datasheet: AH-LS-P-2 LED Marine Navigation Lanterns.pdf
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Optional
l Rotary switches for adjust 256 flash characteristics comply with IALA
l User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation
l External charger
l Wireless remote control
l Bluetooth remote control
l Infrared remote control
l GSM Monitoring
l RS232 485 port
l GPS sync flashing
l Solar panel & battery
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| SPECIFICATIONS | AH-LS/P-2 LED Marine Navigation Lanterns |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red, Green, Yellow, White, Blue |
| Visible Range(NM) | 6-10 (AT@0.74) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 10 |
| Flash Characteristics | Adjustable Steady/Flash mode(others optional) |
| Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 110-240VAC, 12VDC, 48VDC or others |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting(mm) |
190×190×Φ12
|
| Dimension(mm) | 220×220×233 |
| Weight(kg) | 2.5 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| IALA | Signal colors compliance to IALA E-200-1 |
| Options Available | |
| Wireless Remote Control | |
| GSM Monitoring | |
| GPS sync flashing | |
|
RS232 485 port |
|
| Charging port | |
| IALA 256 Light characters adjustable | |
| Solar panel & battery |
