High Bright Medium - intensity Aircraft Warning Light with GPS Function
Product Details
| Working Mode: | Flashing Mode (20 To 60 Times/minute) | Base: | Die Casting Aluminum |
|---|---|---|---|
| Ambient Temperature: | -40℃~+60℃ | Power Consumption: | 60W |
| Emitting Color: | Aviation Red | Input Voltage(V): | AC220V (option Voltage,eg.AC120V,AC110,DC48V) |
| Name: | High Bright Medium - Intensity Aircraft Warning Light With GPS Function | Color: | Red |
| Light Intensity: | 2000cd | ||
| Highlight |
emergency led lights,airplane warning lights |
||
Product Description
High Bright Medium - intensity Aircraft Warning Light with GPS Function
The lamp will automatically begin operation at dusk. Our led obstruction lights are color available by red. With standard communication interfaces, this LED Aviation Obstruction Light could be built in different locations for other applications. We also offer aviation obstruction light designs.
Product Application
Our LED aviation obstruction lights for towers have been widely supplied to Kuwait, U.A.E, Saudi Arabia and Oman. This kind of LED aviation warning lights are widely used on all kinds of high buildings, bridges, steel towers and communication towers.
Packaging & Delivery
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Working way of two lights | Main (Duty)-standby way or Two light working at the same time. |
| Vertical angle | 3° |
| Light source | LED |
| Horizontal angle | 360° |
| Emitting color | Aviation red |
| Operating voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| LED lifetime | ≥100,000h |
| Power consumption | 60W |
| Protection standard | IP65 |
| Mass | 7.0kg |
| Light Material | Base:Die casting aluminum, housing: High borosilicate glass |

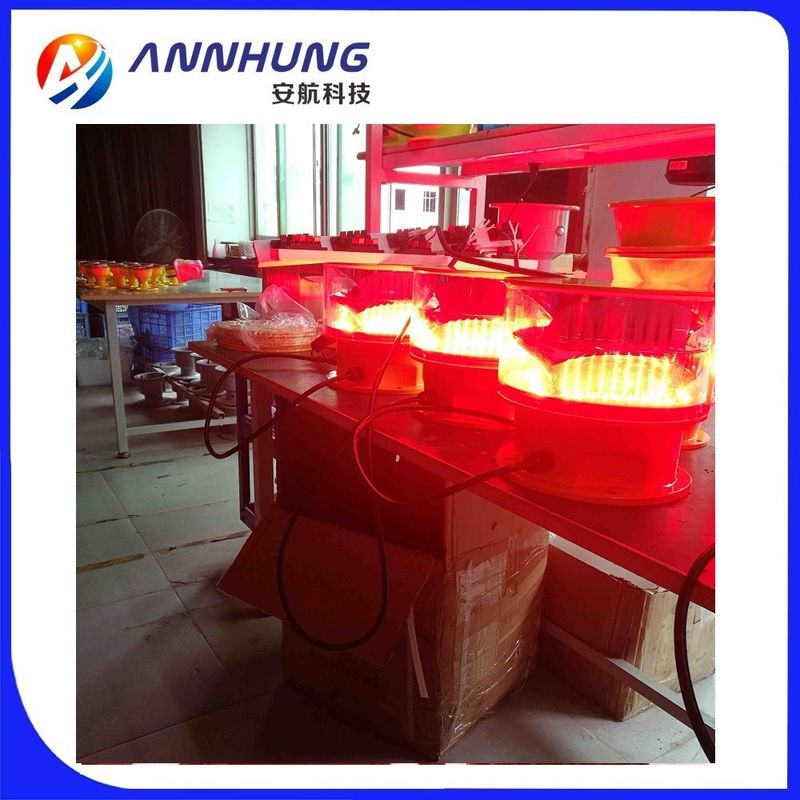

Product Picture
High Bright Medium - intensity Aircraft Warning Light with GPS Function
Datasheet download: download AH-MI-D1 LED Medium-intensity Type C Doub...
Product Highlights
High Bright Medium - intensity Aircraft Warning Light with GPS Function The lamp will automatically begin operation at dusk. Our led obstruction lights are color available by red. With standard communication interfaces, this LED Aviation Obstruction Light could be built in different locations for ...
