Blue Yellow Inset LED Airport Heliport Perimeter Light with Steady Burning
Product Details
| Light Intensity: | ≥100cd | Light Source:: | Ultra High Intensity LED |
|---|---|---|---|
| Base Material: | Aluminum | Emitting Color: | Blue |
| Weight: | 4.9KG | Signal Mode: | Steady-burning |
| Highlight |
portfolio landscape lighting,perimeter lighting products |
||
Product Description
Bule Yellow Inset LED Airport Heliport Perimeter Light with Steady Burning
Product Profile
1.Model: AH-HP/U
2.Applications: Applied to helipad field or airport runway light
3.Standard: ICAO Annex 14
4.Certificate: CAAC Certificate(ICAO Certificate)
5.Improve records: None
6.Fault records: None
7.Quantity/Delivery day: 20 pcs / 10 days
Datasheet: AH-HP-I Heliport Inset Light.pdf
Detail Description:
This product is used in taxiway at night or in the daytime with poor visibility.
Application
This product is used for shining Omnidirectional white or green or yellow light at night or in the daytime with poor visibility to provide good visibility and circling guidance.
Specifications
| Name | Parameter |
| Type | AH-HP/I |
| Power Supply | Optional voltage: AC220V, AC120V, DC48V |
| Power Supply Frequency | 50HZ~60HZ |
| Average Power Consumption | ≤ 8W |
| Working Mode | Steady burning |
| Maximum Intensity | ≥100cd |
| Light Source Service Life | ≥20 years |
| Emitting Color | White |
| Overall Size | Φ194mm×138mm |
| Minimum Embedded Pit Size | Φ194mm×146mm |
| IP Protection | IP66 |
| Ambient Temperature | -20℃~60℃ |
| Net Weight | 5Kg |
| Humidity | <95% |
| Altitude | <4500M |
Dimension Drawing

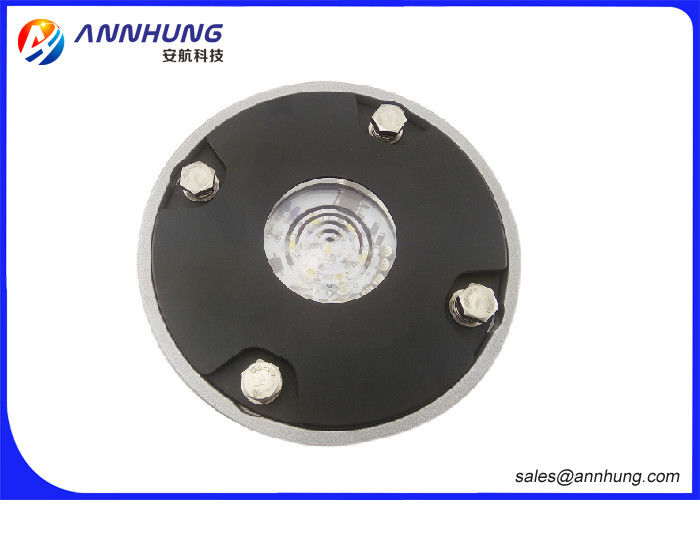

Product Picture
Product Highlights
Bule Yellow Inset LED Airport Heliport Perimeter Light with Steady Burning Product Profile 1.Model: AH-HP/U2.Applications: Applied to helipad field or airport runway light3.Standard: ICAO Annex 144.Certificate: CAAC Certificate(ICAO Certificate)5.Improve records: None 6.Fault records: None 7...
