DC3.2V Marine LED Lights / Solar Navigation Lights For High Chimney

Minimum Order Quantity : 1 pc Price : Negotiable
Packaging Details : paper carton 1 piece/box Delivery Time : Shipped in 15 days after payment
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 1000 Pieces Per Month
Place of Origin: Shenzhen, China Brand Name: ANNHUNG
Certification: ICAO Model Number: AH-LS/C

Detail Information

Flash Rate:: Flashing Mode Or Steady-burning Mode Light Source:: LED
Power Consumption: 1W Weight: 1kg
Wind Load: 80m/s Light Intensity: 1cd(1NM),5cd(2NM)
Operating Voltage: DC3.2V Control Way: Photocell. Light Can Work At Night Automatically By Photocell.
High Light:

marine lanterns lights

,

led navigation lights

Product Description



DC3.2V Marine LED Lights / Solar Navigation Lights For High Chimney





Detail Description:



1.Product Name: Marine Lanterns

2.Mode: AH-LS/M

3.Standard:IALA

4.Light intensity:1cd(1NM),5cd(2NM)

5.Working mode:Flashing mode or Steady-burning mode

6.Light source: LED

7.Service life of LED: ≥100,000hours

8.Operating voltage: DC3.2V, recyclable batteries with the lightest environmental and long life.

9.Control Way: photocell. Light can work at night automatically by photocell.

10.Autonomy(without sunlight):at least 5 days(Option 20 days)



Datasheet: AH-LS-C Solar Marine Lanterns.pdf



Application:



DC3.2V Marine LED Lights / Solar Navigation Lights For High Chimney 0



High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines



Specifications:



SPECIFICATIONS LED Solar Powered Marine Lantern
Light Characteristics
Light Source LED
Available Colors Yellow, Green, White and Red
Intensity(cd) ≥ 32.5cd(Flash mode)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) >10
Reflector Type Fresnel Lens
Flash mode Flashing mode or Steady-burning
Operation Mode Dusk-to-dawn Automatically as standard. 24hours operation as option.

LED Lifetime

Experience(hours)

>100,000
Electrical Characteristics
Operating Voltage DC12V
Power(W) 1
Circuit Protection Integrated
Temperature Range(℃) -55~70
Physical Characteristics
Body Material Polycarbonate
Base Material Die-casting aluminum
Mounting Φ140 by M6
Height(mm) 136
Width(mm) 136
Depth(mm) 220
Mass(kg) 1
Product Life Expectancy 5 years plus
Environmental Factors
Humidity 10%-95%
Wind Speed 80m/s
Waterproof IP68
Compliance
ICAO

Low-intensity Solar-Powered Aviation

Obstruction Light, ICAO Annex 14 Volume

1,'Aerodrome Design and Operations’

Forth edition July 2004,table6.3

FAA Low-intensity Type A or Type B FAA L-810





Dimension Drawing



DC3.2V Marine LED Lights / Solar Navigation Lights For High Chimney 1

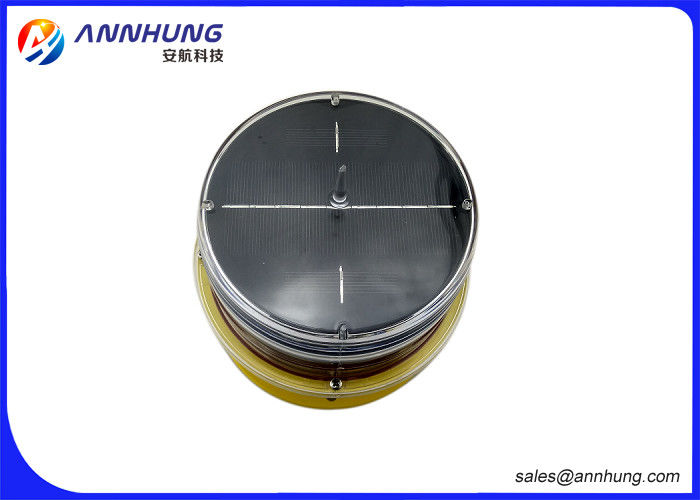

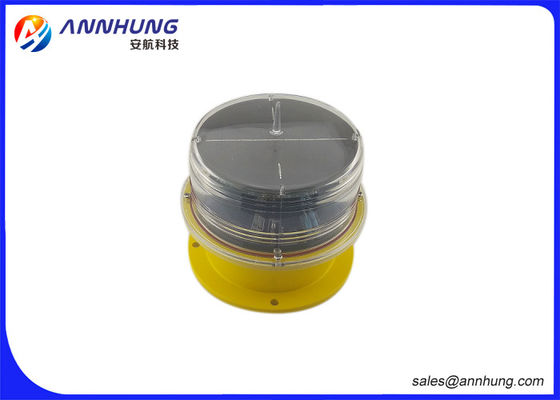

Product Picture





DC3.2V Marine LED Lights / Solar Navigation Lights For High Chimney 2





DC3.2V Marine LED Lights / Solar Navigation Lights For High Chimney 3
