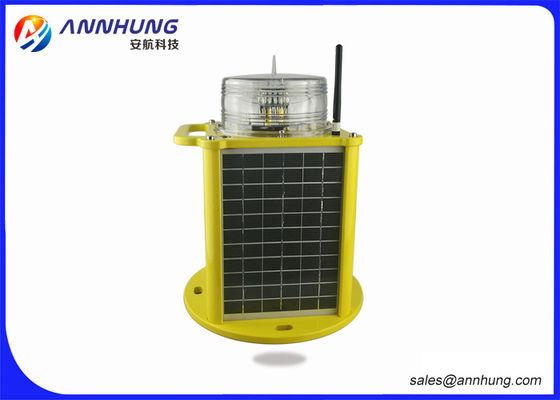

AH-LS-C 3.7Vdc 1.8W 1-3nm Solar Marine Navigation Light
Contact Person : Alice
Phone Number : +86-13260726316
WhatsApp : +8613260726316
| Minimum Order Quantity : | 1 | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | paper carton 1 piece/box | Delivery Time : | Shipped in 15 days after payment |
| Payment Terms : | T/T, Western Union, Money Gram, L/C |
| Place of Origin: | Shenzhen, China | Brand Name: | ANNHUNG |
|---|---|---|---|
| Certification: | ICAO | Model Number: | AH-LS/C |
|
Detail Information |
|||
| Light Source: | LED | Light Intensity: | 1cd(1NM),5cd(2NM) |
|---|---|---|---|
| Working Mode: | Flashing Mode Or Steady-burning Mode | Weight: | 1KG |
| Wind Load:: | 80m/s | ||
| High Light: | marine lanterns lights,solar airfield lighting |
||
Product Description
| SPECIFICATIONS | LS/C Solar Powered Marines Lanterns |
| Light Characteristics | |
| Light Source | LED |
| Available Colors |
Red, Green, Yellow (Amber), Blue or White, Green/ Red |
| Intensity(cd) | 1cd(1NM),5cd(2NM) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | >9 |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | Flashing mode or Steady-burning |
| Operation Mode | Dusk-to-dawn Automatically as standard. 24hours operation as option. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | AC220V (option voltage,eg.AC120V,AC110V,DC48V) |
| Power(W) | 20 |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -40~70 |
| Physical Characteristics | |
| Body Material | Aluminum Alloy |
| Base Material | Die-casting aluminum |
| Mounting | 3/4inch or 1 inch option. |
| Height(mm) | 162 |
| Width(mm) | 162 |
| Depth(mm) | 160 |
| Mass(kg) | 1 |
| Product Life Expectancy | 5 years plus |
| Environmental Factors | |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004, table 6.3 |
| FAA | L-810 Steady-burning Red Aviation Obstruction Light |
