AH-LS-L Solar Powered Aviation Obstruction Light L-810 ICAO 10cd 32.5cd red steady
Product Details
| Standard: | ICAO FAA L-810 | Emitting Color: | Red |
|---|---|---|---|
| Light Intensity: | 10cd 32.5cd | Batttery: | Lithium Ion Battery |
| Solar Panel: | Mono Crystalline Silicon | Light Source: | LED |
| Lens Material: | Polycarbonate | Base Material: | Powder Coated Die-casting Aluminum |
| Working Voltage: | 3.7V | ||
| Highlight |
solar airfield lighting,solar powered led flashing lights |
||
Product Description

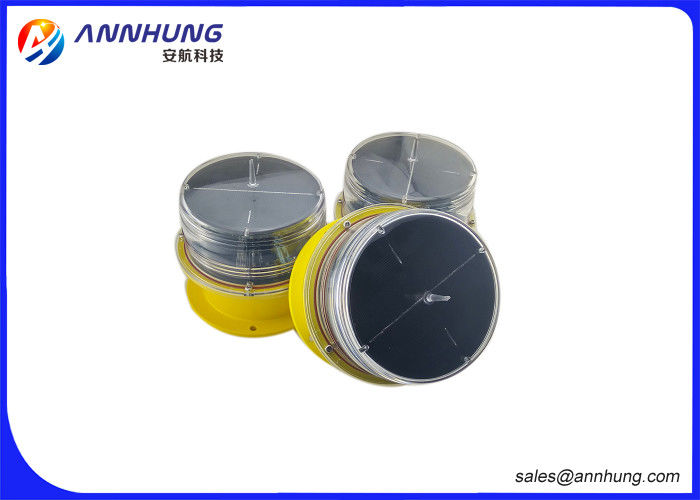

AH-LS-L Solar Powered Aviation Obstruction Light L-810 ICAO 10cd 32.5cd red steady
Advantages
1.Visible distance 2 nm (Tc =0.74)
2.Based on LED technology and its color comply to IALA Recommendations E-200-1.
3.Bird spike against bird drop.
4.Comprehensive protection in short circuit ,over-voltage,floating charge and over temperature.
5.International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6.Strong anticorrosion ,Rain and Snow,quake-proof and UV protection.
7.Clean, renewable, green and reliable energy source.
8.Dusk-to-dawn operation: photocell. Light can work at night automatically by photocell.
9.At least 5 days autonomy without sunshine (Option 20days).
10.Recyclable batteries with the lightest environmental.
11.IP68 protection standard, Full sealing structure.
Datasheet: AH-LS-L Low-intensity L810 Solar Aviation Obstruct...
| SPECIFICATIONS | AH-LS/L Low-intensity Solar Powered Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Emitting Colors | Red as standard. Other colors available on request, including IR |
| Intensity(cd) | 10cd(Steady) 32cd(Flash) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady & Flashing adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
|
LED Lifetime Experience(hours) |
>100,000 |
| Electrical Characteristics | |
| Working Voltage | 3.7 |
| Power(W) | 1.8 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Monocrystalline Silicon |
| Output(watts) | 0.55 |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type |
Lithium ion battery |
| Battery Capacity (Ah) | 6 |
| Nominal Voltage (V) | 3.7 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady: 60 |
| Flashing: 150 | |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 140×140×M6 |
| Dimension(mm) | 162×162×160 |
| Weight(kg) | 1 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004, table 6.3 |
| FAA | L-810 Steady-burning Red Aviation Obstruction |
| Light | |
| Options Available | Charging port |
| Remote Control | |
| Flashing rate | |
| Auto/Manual toggle switch | |
| Powder-coated color | |
| NVG(Night Vision Goggles) compatitble LED |
